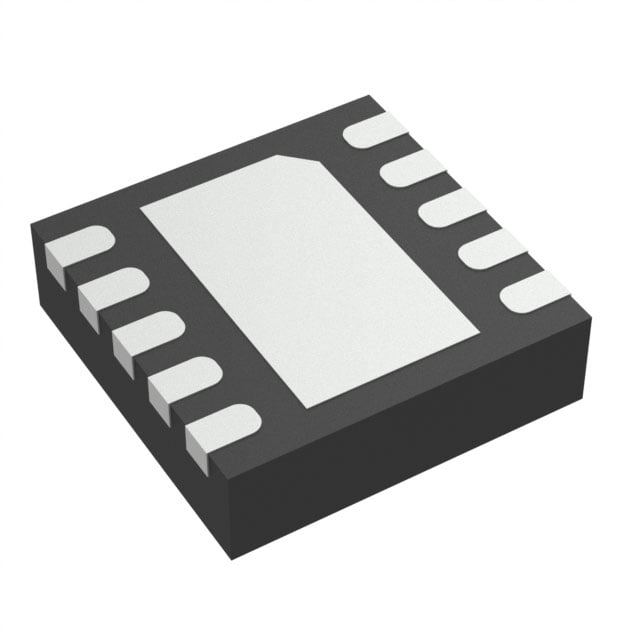

TPS2561DRCR TI Power Switch | 10-VSON (3x3) | Dual-Channel, 2.5A, Adjustable Current Limit

Product Overview

The TPS2561DRCR is a dual-channel, current-limited power-distribution switch from Texas Instruments, designed for applications requiring precision current limiting and robust protection. Housed in a compact 10-pin VSON (3x3 mm) package, it integrates two independent 70-mΩ N-channel MOSFETs with adjustable current-limit thresholds from 250 mA to 2.5 A per channel. The device operates over a wide input voltage range of 2.5 V to 6.5 V, making it suitable for 3.3-V and 5-V bus-powered systems. Key protection features include overcurrent, overtemperature, reverse-current blocking, and under-voltage lockout (UVLO). The TPS2561DRCR is ideal for USB ports, set-top boxes, and industrial automation where reliable power distribution is critical.

Detailed Technical Specifications

Key Features

• Dual-channel, independent current limiting with adjustable threshold (250 mA to 2.5 A)
• Low on-resistance (70 mΩ) minimizes power dissipation
• Reverse-current blocking prevents back-feeding
• Built-in overcurrent, overtemperature, and UVLO protection
• Fast transient response with 5-ms overcurrent blanking
• Enable logic compatible with 1.8-V logic
• Available in small 10-VSON package for space-constrained designs

Target Applications

• USB 3.0/2.0 ports in laptops, docking stations, and monitors
• 5G base station power distribution for remote radio units
• Automotive infotainment and dashboard USB chargers
• Industrial PLC and sensor modules requiring protected outputs
• Set-top boxes and gaming consoles for USB and peripheral power

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS2561DRCR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
