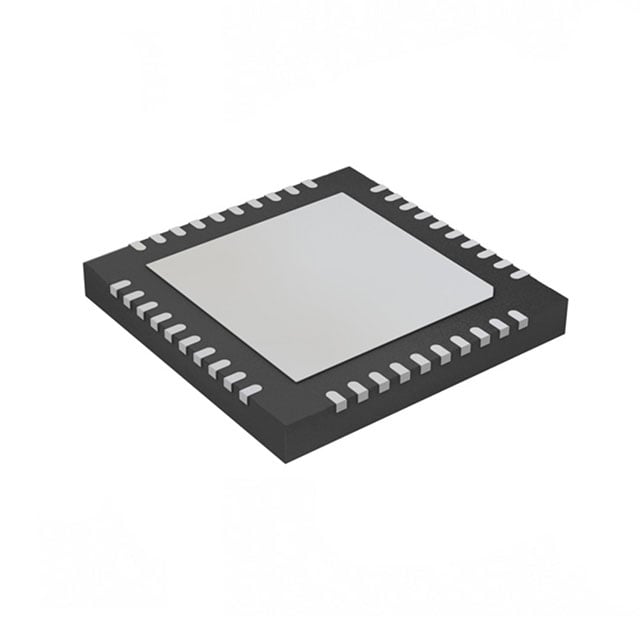

TPS274C65ASRHAR TI Power Switch | 40-VQFN (6x6) | 65mOhm, 4-Channel

Product Overview

The TPS274C65ASRHAR is a 4-channel smart high-side power switch from Texas Instruments, designed for robust control of resistive, inductive, and capacitive loads. It integrates advanced protection features and diagnostics, making it ideal for harsh automotive and industrial environments. The device operates over a wide input voltage range of 4V to 40V and delivers up to 2A per channel with a typical on-resistance of 65mΩ. Housed in a compact 40-pin VQFN (6x6mm) package, it offers high power density and thermal performance.

Detailed Technical Specifications

Key Features

• 4-channel high-side switch with integrated power MOSFETs
• Low on-resistance (65mΩ typical) for reduced power dissipation
• Wide input voltage range (4V to 40V) for 12V and 24V systems
• Advanced protection: overcurrent, overtemperature, short-circuit, and undervoltage lockout
• Diagnostic features: current sense, open load detection, and fault reporting via SPI
• Compact 40-VQFN package (6x6mm) for space-constrained designs
• AEC-Q100 qualified for automotive applications

Target Applications

• Automotive: Body control modules, lighting systems (LED headlights, taillights), seat control, and HVAC actuators
• Industrial: Programmable logic controllers (PLCs), motor control, and solenoid drivers
• 5G Base Stations: Power distribution for remote radio units (RRUs) and antenna systems
• Dashboard: Instrument cluster and infotainment system power management
• Battery Management: Load switching in battery packs and power distribution units
