TPS61177ARGRR TI LED Driver | 20-VQFN (3.5x3.5) | 40V, 1.5A, PWM Dimming

Product Overview

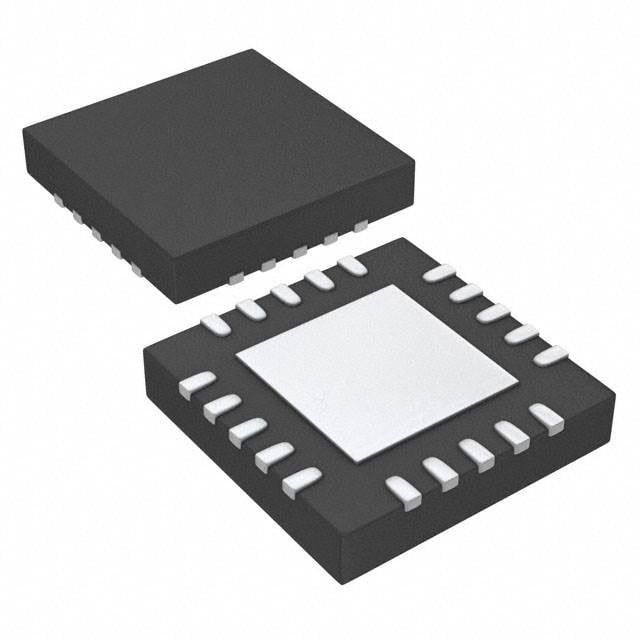

The TPS61177ARGRR from Texas Instruments is a high-efficiency, 40V boost LED driver designed for medium to large LCD backlight applications. It integrates a 1.5A, 40V MOSFET switch and supports PWM dimming with a wide frequency range. The device operates from a 2.7V to 18V input supply, making it suitable for battery-powered and automotive systems. Its compact 20-VQFN (3.5x3.5) package enables space-constrained designs.

Detailed Technical Specifications

Key Features

• Integrated 40V, 1.5A MOSFET switch
• Wide input voltage range: 2.7V to 18V
• Programmable switching frequency up to 2.2MHz
• PWM dimming with 100:1 ratio
• High efficiency up to 90%
• Comprehensive protection: OVP, OCP, OTP, UVLO
• Small 20-VQFN package for compact designs

Target Applications

• Automotive dashboard displays (e.g., 12.3-inch cluster)
• 5G base station status panels
• Industrial HMI (Human Machine Interface) screens
• Medical equipment displays (e.g., patient monitors)
• Portable gaming consoles
• Notebook and tablet backlighting

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS61177ARGRR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
