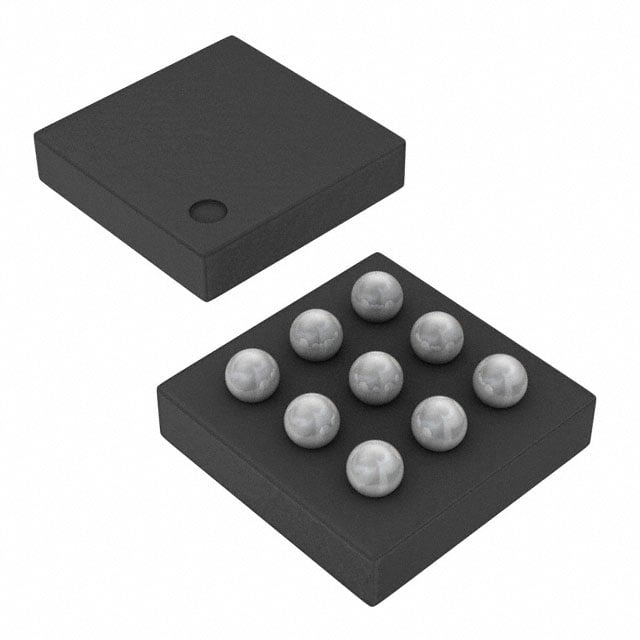

TPS61253YFFT TI DC-DC Converter | 9-DSBGA | 3.5A Switch, 2.3-5.5V Input

Product Overview

The TPS61253YFFT from Texas Instruments is a high-efficiency, low-quiescent-current boost converter with a 3.5A integrated switch. It operates from an input voltage range of 2.3V to 5.5V and can deliver an output voltage up to 5.5V. The device is housed in a compact 9-pin DSBGA package (YFF), making it ideal for space-constrained applications. With a typical quiescent current of 17µA and a shutdown current of 1µA, it is optimized for battery-powered systems requiring extended battery life.

Detailed Technical Specifications

Key Features

• Integrated 3.5A switch with low RDS(on)
• High efficiency up to 95% over a wide load range
• Low quiescent current of 17 µA for extended battery life
• Adjustable output voltage from 2.5V to 5.5V
• 2.5 MHz fixed switching frequency for small external components
• Power-save mode for improved efficiency at light loads
• Over-temperature and over-current protection
• Small 9-pin DSBGA package (1.2mm x 1.2mm)

Target Applications

The TPS61253YFFT is suitable for a variety of applications requiring efficient power conversion from a single-cell Li-ion battery or other low-voltage sources. Specific examples include:

• 5G base station power management modules
• Automotive dashboard displays and infotainment systems
• Portable medical devices such as glucose meters and pulse oximeters
• Wireless IoT sensors and smart home devices
• Battery-powered industrial handheld terminals

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS61253YFFT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS61253YFFT 是德州儀器 (TI) 推出的一款高效率、低靜態電流升壓轉換器，內置 3.5A 開關。其輸入電壓範圍為 2.3V 至 5.5V，可提供高達 5.5V 的輸出電壓。器件採用緊湊的 9 引腳 DSBGA (YFF) 封裝，非常適合空間受限的應用。典型靜態電流為 17µA，關斷電流為 1µA，針對需要延長電池壽命的電池供電系統進行了優化。

詳細技術參數

核心特性

• 集成 3.5A 開關，低導通電阻
• 在寬負載範圍內效率高達 95%
• 17 µA 低靜態電流，延長電池壽命
• 可調輸出電壓 2.5V 至 5.5V
• 2.5 MHz 固定開關頻率，可使用小型外部元件
• 省電模式，輕載時提高效率
• 過溫和過流保護
• 小型 9 引腳 DSBGA 封裝 (1.2mm x 1.2mm)

典型應用場景

TPS61253YFFT 適用於需要從單節鋰離子電池或其他低電壓源進行高效電源轉換的多種應用。具體示例包括：

• 5G 基站電源管理模塊
• 汽車儀表板顯示器和信息娛樂系統
• 便攜式醫療設備，如血糖儀和脈搏血氧儀
• 無線 IoT 傳感器和智能家居設備
• 電池供電的工業手持終端

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS61253YFFT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
