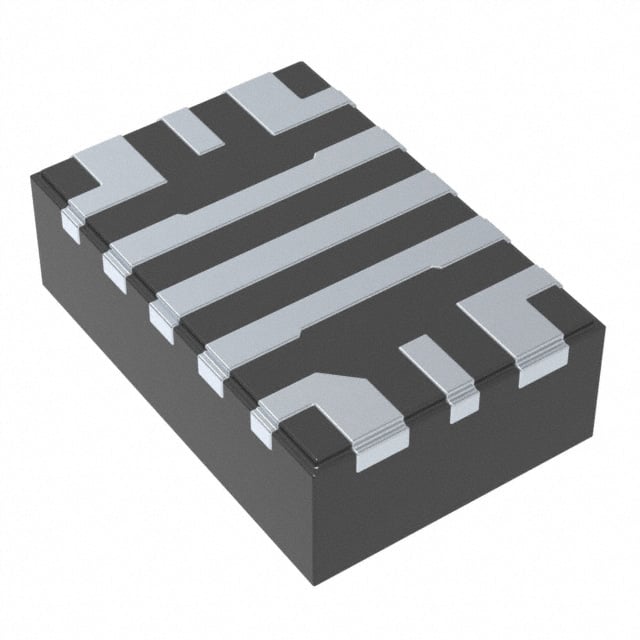

TPS62812MRWYRNEP TI Step-Down Converter | 9-VQFN-HR(3x2) | 2.7V-6V Input, 1A Output

Product Overview

The TPS62812MRWYRNEP from Texas Instruments is a high-efficiency, synchronous step-down (buck) converter capable of delivering up to 1A of continuous output current. It operates over a wide input voltage range of 2.7V to 6V, making it ideal for low-power applications powered by single-cell Li-ion batteries or 3.3V/5V rails. The device is housed in a compact 9-pin VQFN-HR package (3mm x 2mm) with a 0.5mm pitch, enabling space-constrained designs. With a typical quiescent current of 12µA and a switching frequency of 2.4MHz, it offers excellent efficiency across the load range.

Detailed Technical Specifications

Key Features

• High efficiency: up to 95% at light loads
• Low quiescent current: 12µA (typical)
• 2.4MHz fixed switching frequency minimizes external component size
• Power-save mode for improved efficiency at light loads
• 100% duty cycle for low dropout operation
• Internal soft-start limits inrush current
• Overcurrent and overtemperature protection
• Small 9-VQFN-HR package (3mm x 2mm)

Target Applications

• 5G base station: powering small cells and remote radio units
• Automotive dashboard: infotainment and cluster power supplies
• Portable medical devices: glucose meters, pulse oximeters
• Industrial sensors: wireless IoT nodes and transmitters
• Battery-powered equipment: wearables, smart locks

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS62812MRWYRNEP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS62812MRWYRNEP 是德州儀器推出的一款高效同步降壓轉換器，可提供高達 1A 的連續輸出電流。它支持 2.7V 至 6V 的寬輸入電壓範圍，非常適合由單節鋰離子電池或 3.3V/5V 電源軌供電的低功耗應用。器件採用緊湊的 9 引腳 VQFN-HR 封裝（3mm x 2mm，0.5mm 間距），適用於空間受限的設計。典型靜態電流為 12µA，開關頻率為 2.4MHz，可在整個負載範圍內提供出色的效率。

詳細技術參數

核心特性

• 高效率：輕載時高達 95%
• 低靜態電流：典型值 12µA
• 2.4MHz 固定開關頻率，減小外部元件尺寸
• 省電模式，提升輕載效率
• 100% 佔空比，實現低壓差操作
• 內部軟啟動，限制浪湧電流
• 過流和過溫保護
• 小型 9-VQFN-HR 封裝（3mm x 2mm）

典型應用場景

• 5G 基站：為小型基站和遠程射頻單元供電
• 汽車儀表板：信息娛樂系統和儀表組電源
• 便攜式醫療設備：血糖儀、脈搏血氧儀
• 工業傳感器：無線 IoT 節點和發射器
• 電池供電設備：可穿戴設備、智能鎖

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS62812MRWYRNEP 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
