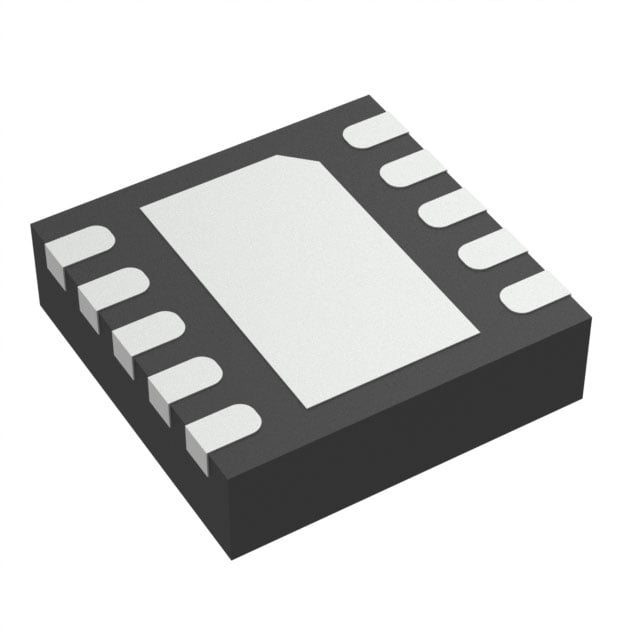

TPS63700DRCR TI Inverting DC/DC Converter | 10-VSON (3x3) | -2V to -15V Output

Product Overview

The TPS63700DRCR from Texas Instruments is a high-performance inverting DC/DC converter designed to generate negative output voltages from a positive input supply. Housed in a compact 10-pin VSON package (3x3 mm), this device delivers an adjustable output voltage range from -2 V to -15 V with an output current capability up to 360 mA. Its high switching frequency of up to 1.2 MHz allows for small external components, making it ideal for space-constrained applications. The TPS63700DRCR features integrated power MOSFETs, soft-start, and thermal shutdown, ensuring reliable operation in demanding environments.

Detailed Technical Specifications

Key Features

• Adjustable negative output voltage from -2 V to -15 V
• High switching frequency (1.2 MHz) enables small inductor and capacitor values
• Integrated 1.4 A typical switch current limit
• Internal soft-start reduces inrush current
• Thermal shutdown and overcurrent protection
• Low shutdown current (<1 µA)
• Small 10-pin VSON package (3x3 mm) for compact designs

Target Applications

• 5G base station power supplies (e.g., generating -5 V for RF amplifiers)
• Automotive dashboard displays (e.g., negative bias for LCD panels)
• Industrial sensor systems (e.g., -3.3 V for op-amp supplies)
• Portable medical devices (e.g., -2.5 V for analog front-ends)
• Test and measurement equipment (e.g., -12 V for precision circuits)
