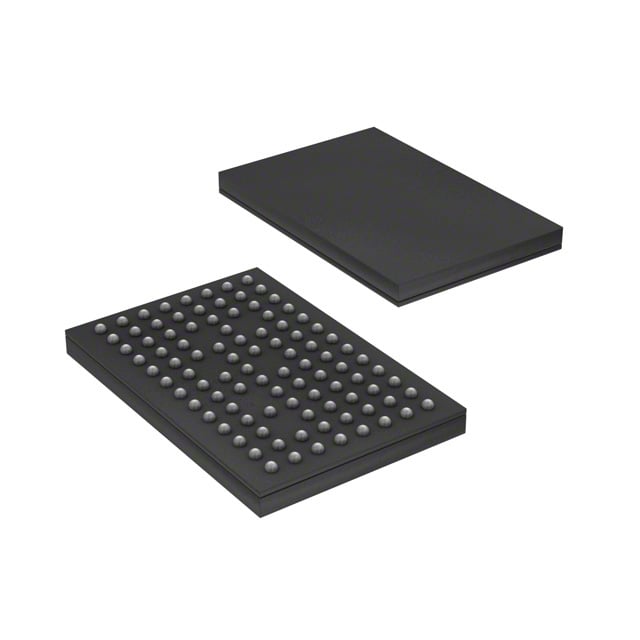

TPS6591104EA2ZRC TI PMIC | 98-BGAMICROSTARJUNIOR（9X6） | 6 Buck Converters, 4 LDOs

Product Overview

The TPS6591104EA2ZRC is a highly integrated power management IC (PMIC) from Texas Instruments, designed to meet the demanding power requirements of modern processors, FPGAs, and system-on-chip (SoC) applications. Housed in a compact 98-pin BGA MICROSTAR JUNIOR package (9x6 mm), this device combines multiple voltage rails, sequencing, and monitoring functions to simplify power supply design and reduce board space. It features six step-down (buck) converters, four low-dropout regulators (LDOs), a real-time clock (RTC) supply, and a comprehensive power-up/power-down sequencer. The TPS6591104EA2ZRC is optimized for high-efficiency operation across a wide input voltage range (2.7V to 5.5V), making it suitable for battery-powered and line-powered systems.

Detailed Technical Specifications

Key Features

• 6 high-efficiency step-down converters with integrated FETs, supporting dynamic voltage scaling (DVS)
• 4 low-dropout regulators for noise-sensitive analog and I/O supplies
• Programmable power-up and power-down sequencing with configurable delays
• I2C interface for dynamic voltage scaling, mode control, and status monitoring
• Built-in power-good outputs and fault protection (overcurrent, overtemperature, undervoltage lockout)
• Low quiescent current in standby mode (typical 10 µA)
• Small footprint: 98-ball BGA, 9x6 mm, 0.5 mm pitch

Target Applications

• 5G base station power management (e.g., for FPGA or SoC cores)
• Automotive infotainment and dashboard systems (e.g., for processor and display power)
• Industrial embedded systems (e.g., for ARM Cortex-A series processors)
• Portable medical devices (e.g., for ultrasound or patient monitoring)
• Networking equipment (e.g., for router/switch SoCs)
