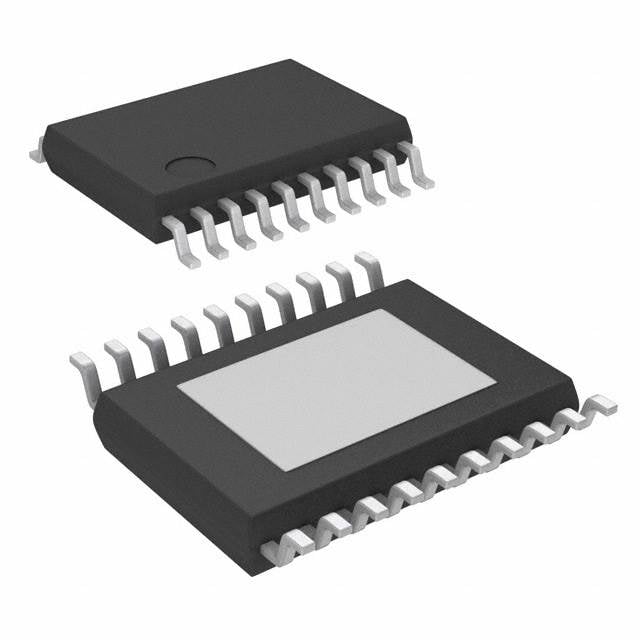

TPS70102PWPR TI Dual-Output LDO Regulator | 20-HTSSOP | 2.5V/3.3V, 500mA

Product Overview

The TPS70102PWPR from Texas Instruments is a dual-output low-dropout (LDO) voltage regulator designed for applications requiring two independent regulated voltages. Housed in a 20-pin HTSSOP package, this device delivers up to 500 mA per output with a dropout voltage as low as 170 mV at full load. It features a wide input voltage range of 2.7 V to 6 V and provides fixed output voltages of 2.5 V and 3.3 V, making it ideal for powering mixed-signal circuits in industrial and automotive systems.

Detailed Technical Specifications

Key Features

• Dual independent LDO outputs with fixed 2.5 V and 3.3 V
• Low dropout voltage: 170 mV typical at 500 mA
• Low quiescent current: 185 µA typical
• High PSRR: 60 dB at 1 kHz
• Thermal shutdown and overcurrent protection
• Enable pins for each output
• PowerPAD package for enhanced thermal performance
• Stable with ceramic output capacitors

Target Applications

• 5G base station power management (e.g., powering FPGA core and I/O)
• Automotive dashboard displays (e.g., supplying 2.5V to MCU and 3.3V to touch controller)
• Industrial sensor modules (e.g., dual-rail supply for analog front-end)
• Portable medical devices (e.g., battery-powered patient monitors)
• Networking equipment (e.g., router SoC core and peripheral rails)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS70102PWPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
