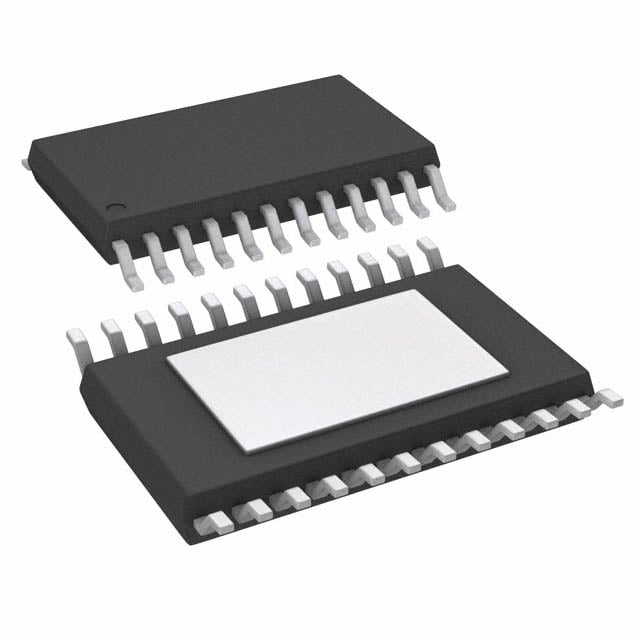

TPS70402PWPR TI Dual-Output LDO Regulator | 24-HTSSOP | 3.3V/2.5V, 1A/2A

Product Overview

The TPS70402PWPR from Texas Instruments is a dual-output low-dropout (LDO) voltage regulator designed for applications requiring two independent regulated voltages. Housed in a compact 24-HTSSOP package, this device delivers output 1 (VO1) adjustable from 1.22V to 5.5V with a 1A current capability, and output 2 (VO2) adjustable from 1.22V to 5.5V with a 2A current capability. The TPS70402PWPR features low dropout voltage (typically 200mV at 1A for VO1 and 300mV at 2A for VO2), high accuracy (±1%), and excellent transient response. It includes enable pins, undervoltage lockout (UVLO), and thermal shutdown protection, making it ideal for powering sensitive loads in industrial, automotive, and telecommunications systems.

Detailed Technical Specifications

Key Features

• Dual-output LDO with independent enable and soft-start
• Low dropout voltage minimizes power dissipation
• High output accuracy (±1%) over line, load, and temperature
• Low quiescent current (85µA) for battery-powered applications
• Excellent transient response
• Built-in UVLO and thermal shutdown protection
• Stable with ceramic output capacitors (≥2.2µF)
• Small 24-HTSSOP package for space-constrained designs

Target Applications

• 5G base station power management (e.g., powering FPGA cores and I/O)
• Automotive infotainment and dashboard systems (e.g., supplying 3.3V and 1.8V rails)
• Industrial control systems (e.g., PLC and motor drive power supplies)
• Telecommunications equipment (e.g., routers and switches)
• Medical devices (e.g., patient monitoring systems)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS70402PWPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
