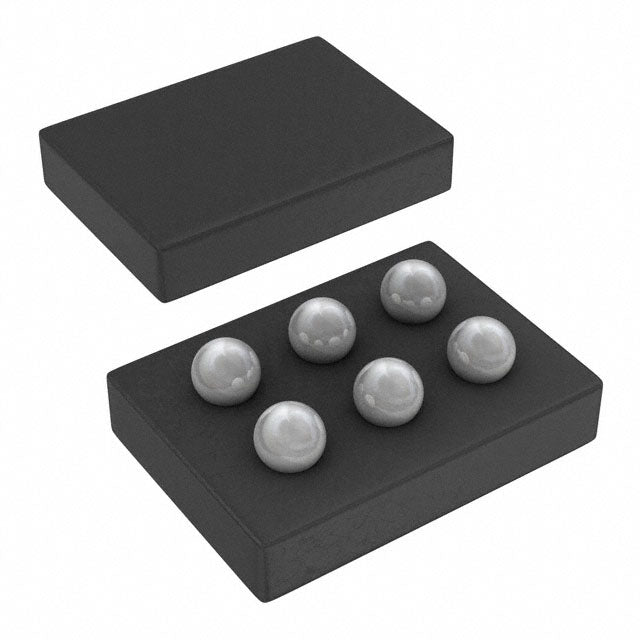

TPS71818-27YZCR TI LDO Regulator | 6-DSBGA (1X1.5) | Dual Output 1.8V/2.7V, 200mA

Product Overview

The TPS71818-27YZCR is a dual-output, low-dropout (LDO) linear regulator from Texas Instruments, designed to deliver fixed output voltages of 1.8V and 2.7V with a maximum output current of 200mA per channel. Housed in a compact 6-pin DSBGA (1x1.5mm) package, this device offers excellent line and load regulation, making it ideal for space-constrained applications requiring multiple voltage rails. With a low dropout voltage of typically 130mV at 200mA load, it ensures efficient operation even when the input voltage is close to the output voltage. The TPS71818-27YZCR also features thermal shutdown and current limit protection, enhancing system reliability.

Detailed Technical Specifications

Key Features

• Dual output LDO with fixed 1.8V and 2.7V outputs
• Low dropout voltage: 130mV at 200mA
• High output accuracy: ±2% over temperature
• Low quiescent current: 80µA typical
• Stable with ceramic output capacitors (1µF typical)
• Thermal shutdown and overcurrent protection
• Ultra-small 6-DSBGA package (1x1.5mm)

Target Applications

• 5G base stations: powering RF transceivers and FPGAs requiring 1.8V and 2.7V rails
• Automotive dashboard: supplying analog and digital circuits in infotainment systems
• Portable medical devices: providing clean power for sensors and microcontrollers
• Industrial IoT sensors: dual-rail power for wireless modules and processors
• Consumer electronics: smartphones, tablets, and wearables

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS71818-27YZCR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS71818-27YZCR 是德州儀器（TI）推出的雙輸出低壓差線性穩壓器（LDO），固定輸出電壓為 1.8V 和 2.7V，每通道最大輸出電流 200mA。採用緊湊的 6 引腳 DSBGA（1x1.5mm）封裝，具有優異的線性和負載調整率，非常適合需要多電壓軌的空間受限應用。在 200mA 負載下，典型壓差僅 130mV，確保輸入電壓接近輸出電壓時仍能高效工作。此外，該器件還具有熱關斷和電流限制保護功能，增強系統可靠性。

詳細技術參數

核心特性

• 雙輸出 LDO，固定 1.8V 和 2.7V 輸出
• 低壓差：200mA 時典型值 130mV
• 高輸出精度：全溫度範圍 ±2%
• 低靜態電流：典型值 80µA
• 可使用陶瓷輸出電容器（典型值 1µF）穩定工作
• 熱關斷和過流保護
• 超小 6-DSBGA 封裝（1x1.5mm）

典型應用場景

• 5G 基站：為射頻收發器和 FPGA 提供 1.8V 和 2.7V 電源
• 汽車儀表盤：為信息娛樂系統中的模擬和數字電路供電
• 便攜式醫療設備：為傳感器和微控制器提供清潔電源
• 工業物聯網傳感器：為無線模塊和處理器提供雙軌電源
• 消費電子：智能手機、平板電腦和可穿戴設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS71818-27YZCR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
