TPS72301DRVT TI LDO Regulator | 6-WSON (2x2) | -3V to -10V, 200mA

Product Overview

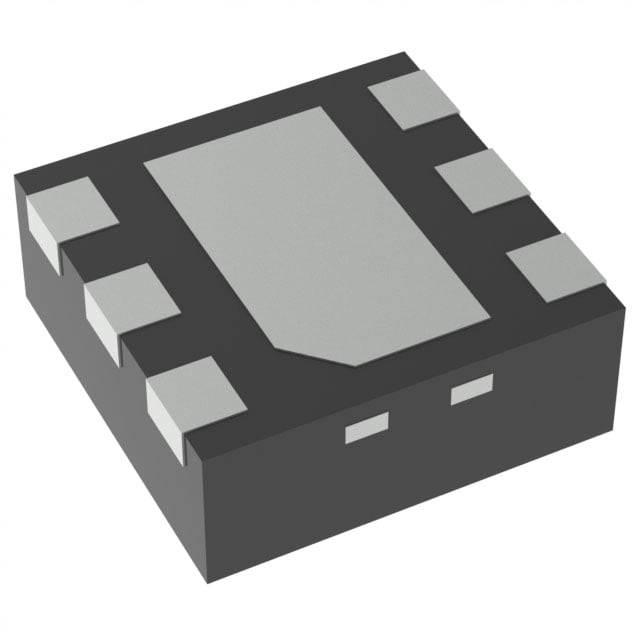

The TPS72301DRVT from Texas Instruments is a low-dropout (LDO) linear voltage regulator designed for negative output voltages. It provides a fixed output voltage of -3.3V or adjustable output from -3V to -10V with a maximum output current of 200mA. Housed in a compact 6-pin WSON (2x2 mm) package, it is ideal for space-constrained applications requiring a clean negative supply rail.

Detailed Technical Specifications

Key Features

• Low dropout voltage: 350mV at 200mA
• High accuracy: ±2% output voltage tolerance
• Low quiescent current: 85µA (typical)
• Thermal shutdown and overcurrent protection
• Stable with ceramic output capacitors
• Enable pin for power sequencing

Target Applications

• 5G base station power management (e.g., negative rail for GaN amplifiers)
• Automotive dashboard displays (e.g., negative bias for LCD)
• Industrial sensor systems (e.g., -5V supply for op-amps)
• Portable medical devices (e.g., ECG monitors)
• Test and measurement equipment (e.g., precision ADC reference)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS72301DRVT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
