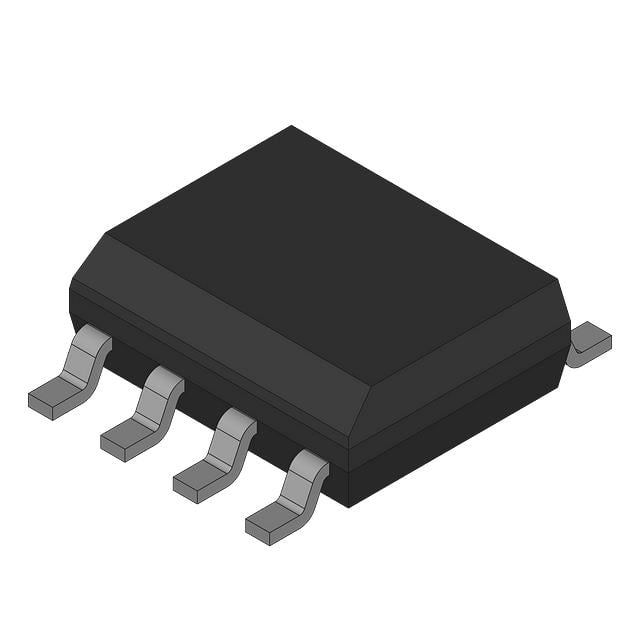

TPS7230QDR TI LDO Regulator | 8-SOIC | -30V, 200mA, Low Noise

Product Overview

The TPS7230QDR from Texas Instruments is a high-performance, low-dropout (LDO) linear regulator designed for negative voltage regulation. It delivers up to 200mA output current with a dropout voltage of typically 350mV. The device operates over an input voltage range from -2.7V to -30V, making it suitable for a wide variety of applications requiring a stable negative rail. Housed in an 8-pin SOIC package, the TPS7230QDR offers excellent line and load regulation, low output noise (typically 30µVrms), and a shutdown feature for power savings. This regulator is ideal for powering sensitive analog circuits, data converters, and RF components in industrial, automotive, and telecommunications systems.

Detailed Technical Specifications

Key Features

• Negative output voltage: -3.0V fixed
• Output current up to 200mA
• Low dropout voltage: 350mV at 200mA
• Wide input voltage range: -2.7V to -30V
• Low output noise: 30µVrms
• Excellent line and load regulation
• Low quiescent current: 120µA
• Shutdown mode for power saving
• Thermal shutdown and overcurrent protection
• 8-pin SOIC package

Target Applications

• 5G base station power management (negative rail for GaN amplifiers)
• Automotive dashboard displays and infotainment systems
• Industrial sensor interfaces and data acquisition systems
• Precision analog circuits (op-amps, ADCs, DACs)
• RF and microwave communication equipment
• Medical instrumentation requiring low noise

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS7230QDR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
