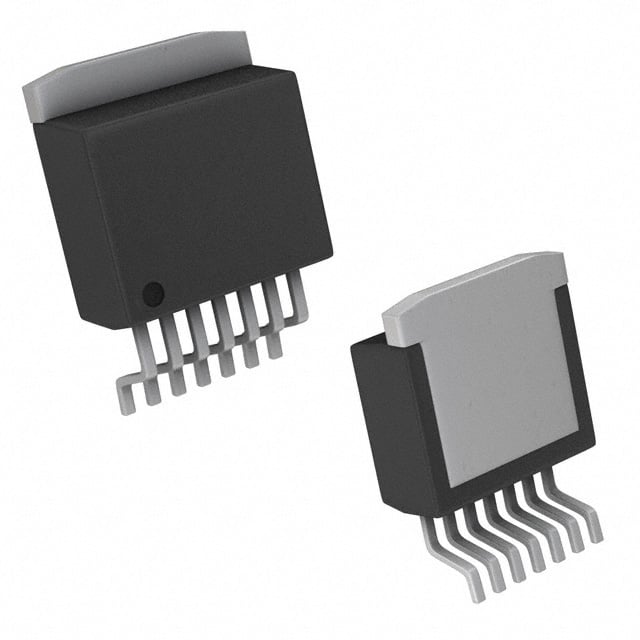

TPS74201KTWTG3 TI LDO Regulator | TO-263 (DDPAK-7) | 1.5A, Adjustable Output

Product Overview

The TPS74201KTWTG3 is a high-performance, low-dropout (LDO) linear voltage regulator from Texas Instruments (TI). It is designed to deliver up to 1.5A of output current with a dropout voltage as low as 80mV at full load. The device offers an adjustable output voltage range from 0.8V to 3.6V, making it suitable for powering low-voltage core rails in modern digital systems. Housed in a TO-263 (DDPAK-7) package, it provides excellent thermal performance for high-power applications. The TPS74201KTWTG3 features high accuracy, low noise, and fast transient response, ensuring stable power delivery for sensitive loads.

Detailed Technical Specifications

Key Features

• High output current capability: 1.5A
• Low dropout voltage: 80mV typical at 1.5A
• Adjustable output voltage from 0.8V to 3.6V
• High accuracy: ±1% over line, load, and temperature
• Excellent PSRR: 60dB at 1kHz
• Low output noise: 30µVrms
• Low quiescent current: 85µA typical
• Fast transient response
• Stable with ceramic output capacitors
• Thermal shutdown and overcurrent protection
• Wide operating temperature range: -40°C to +125°C

Target Applications

• 5G base station power management
• Automotive infotainment and dashboard systems
• Industrial control systems
• FPGA and DSP core voltages
• Medical imaging equipment
• Test and measurement instruments
• Networking and telecommunications equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS74201KTWTG3. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS74201KTWTG3 是德州儀器（TI）推出的一款高性能低壓差線性穩壓器（LDO）。它能夠提供高達 1.5A 的輸出電流，在滿載時壓差低至 80mV。該器件提供 0.8V 至 3.6V 的可調輸出電壓範圍，適用於為現代數字系統中的低壓核心供電。採用 TO-263（DDPAK-7）封裝，為高功率應用提供出色的熱性能。TPS74201KTWTG3 具有高精度、低噪聲和快速瞬態響應，確保為敏感負載提供穩定的電源。

詳細技術參數

核心特性

• 高輸出電流能力：1.5A
• 低壓差電壓：1.5A 時典型值 80mV
• 可調輸出電壓：0.8V 至 3.6V
• 高精度：在線路、負載和溫度範圍內 ±1%
• 優異的電源抑制比：1kHz 時 60dB
• 低輸出噪聲：30µVrms
• 低靜態電流：典型值 85µA
• 快速瞬態響應
• 與陶瓷輸出電容器穩定工作
• 熱關斷和過流保護
• 寬工作溫度範圍：-40°C 至 +125°C

典型應用場景

• 5G 基站電源管理
• 汽車信息娛樂和儀表板系統
• 工業控制系統
• FPGA 和 DSP 核心電壓
• 醫療成像設備
• 測試和測量儀器
• 網絡和電信設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS74201KTWTG3 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
