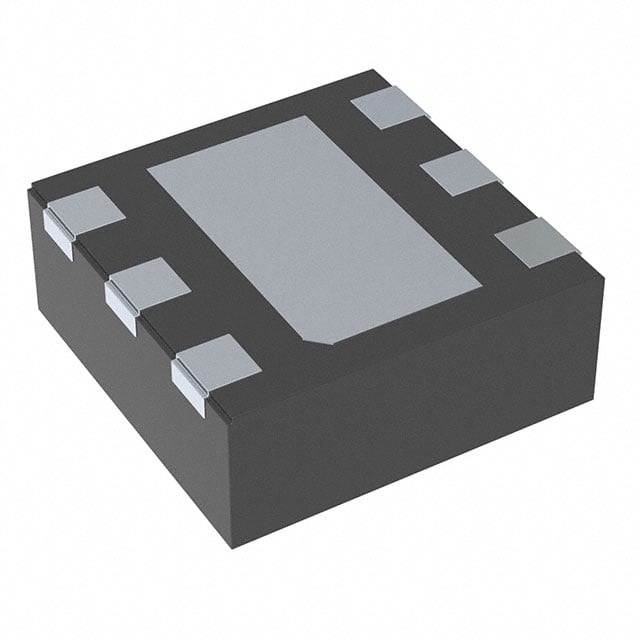

TPS74510PQWDRVRQ1 TI LDO Regulator | 6-WSON (2x2) | 1A, 1.0V Output

Product Overview

The TPS74510PQWDRVRQ1 is a low-dropout (LDO) linear voltage regulator from Texas Instruments, designed for automotive and industrial applications. It offers a fixed output voltage of 1.0V with a maximum output current of 1A. The device is housed in a compact 6-pin WSON package (2mm x 2mm), making it ideal for space-constrained designs. With a typical dropout voltage of only 200mV at 1A load, it ensures efficient power conversion even under low input-to-output voltage differentials. The TPS74510PQWDRVRQ1 features enable control, overcurrent protection, and thermal shutdown, providing robust performance in harsh environments.

Detailed Technical Specifications

Key Features

• Low dropout voltage: 200mV at 1A
• High accuracy: ±1% output voltage tolerance
• Low quiescent current: 45µA typical
• Enable pin for power sequencing
• Overcurrent and thermal protection
• Stable with ceramic output capacitors (≥2.2µF)
• AEC-Q100 qualified for automotive applications

Target Applications

• Automotive infotainment systems (e.g., dashboard displays, head units)
• Advanced driver-assistance systems (ADAS) modules (e.g., camera modules, radar sensors)
• 5G base station power management (e.g., small cell power supplies)
• Industrial sensor nodes (e.g., pressure transmitters, temperature sensors)
• Portable battery-powered devices (e.g., handheld diagnostic tools)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS74510PQWDRVRQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS74510PQWDRVRQ1 是德州儀器（TI）推出的一款低壓差線性穩壓器（LDO），專為汽車和工業應用設計。它提供固定的1.0V輸出電壓，最大輸出電流為1A。器件採用緊湊的6引腳WSON封裝（2mm x 2mm），非常適合空間受限的設計。在1A負載下，典型壓差僅為200mV，確保在低輸入輸出電壓差下高效轉換。TPS74510PQWDRVRQ1 具有使能控制、過流保護和熱關斷功能，在惡劣環境下提供穩健性能。

詳細技術參數

核心特性

• 低壓差：1A時200mV
• 高精度：±1%輸出電壓容差
• 低靜態電流：典型值45µA
• 使能引腳，用於電源排序
• 過流和熱保護
• 與陶瓷輸出電容（≥2.2µF）穩定工作
• 通過AEC-Q100認證，適用於汽車應用

典型應用場景

• 汽車信息娛樂系統（例如儀表盤顯示、主機）
• 高級駕駛輔助系統（ADAS）模塊（例如攝像頭模塊、雷達傳感器）
• 5G基站電源管理（例如小基站電源）
• 工業傳感器節點（例如壓力變送器、溫度傳感器）
• 便攜式電池供電設備（例如手持診斷工具）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS74510PQWDRVRQ1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
