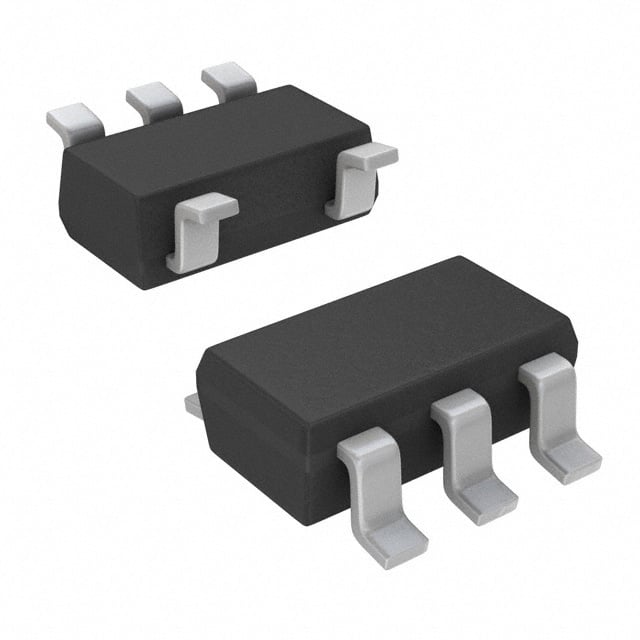

TPS78228DDCT TI LDO Regulator | SOT-23-THIN | 2.8V Output, 150mA

Product Overview

The TPS78228DDCT is a low-dropout (LDO) linear voltage regulator from Texas Instruments, offering a fixed output voltage of 2.8V with a maximum output current of 150mA. Housed in a compact SOT-23-THIN package, this device is designed for space-constrained applications requiring low quiescent current and high accuracy. With a dropout voltage as low as 130mV at full load, it ensures efficient operation even under low input-to-output voltage differentials. The TPS78228DDCT integrates thermal shutdown and current limit protection, making it a reliable choice for power-sensitive designs.

Detailed Technical Specifications

Key Features

• Ultra-low quiescent current: 1.6µA typical, ideal for battery-powered devices
• Low dropout voltage: 130mV at 150mA load
• High output voltage accuracy: ±2% over line, load, and temperature
• Stable with ceramic output capacitors (1µF or larger)
• Built-in thermal shutdown and current limit protection
• Small SOT-23-THIN package for space-saving designs

Target Applications

• 5G base station power management (e.g., powering RF transceivers)
• Automotive dashboard displays and infotainment systems
• Portable medical devices (e.g., glucose meters, pulse oximeters)
• IoT sensors and wireless modules (e.g., Bluetooth Low Energy)
• Battery-powered wearables (e.g., smartwatches, fitness trackers)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS78228DDCT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS78228DDCT 是德州儀器（TI）推出的一款低壓差線性穩壓器（LDO），提供固定的 2.8V 輸出電壓，最大輸出電流為 150mA。該器件採用緊湊的 SOT-23-THIN 封裝，適用於對空間要求嚴格的應用，同時具有低靜態電流和高精度特性。在滿載條件下，其壓差電壓低至 130mV，確保在輸入與輸出電壓差較小時仍能高效工作。TPS78228DDCT 集成了熱關斷和電流限制保護功能，是電源敏感型設計的可靠選擇。

詳細技術參數

核心特性

• 超低靜態電流：典型值 1.6µA，非常適合電池供電設備
• 低壓差電壓：150mA 負載下僅 130mV
• 高輸出電壓精度：在線路、負載和溫度變化下保持 ±2%
• 支持陶瓷輸出電容器（1µF 或更大），穩定性好
• 內置熱關斷和電流限制保護
• 小型 SOT-23-THIN 封裝，節省 PCB 空間

典型應用場景

• 5G 基站電源管理（例如為射頻收發器供電）
• 汽車儀表盤顯示和信息娛樂系統
• 便攜式醫療設備（如血糖儀、脈搏血氧儀）
• 物聯網傳感器和無線模塊（如低功耗藍牙）
• 電池供電的可穿戴設備（如智能手錶、健身追蹤器）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS78228DDCT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
