TPS7A20L12PDQNR TI LDO Regulator | 4-X2SON(1x1) | 1.2V Fixed Output, 300mA

Product Overview

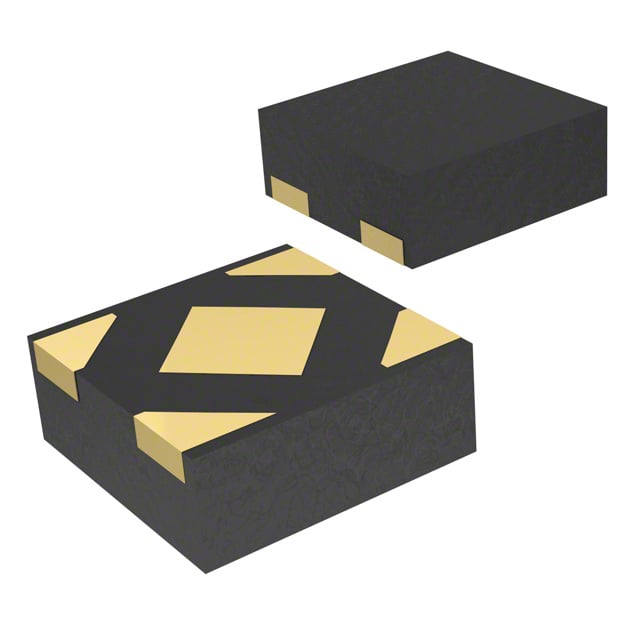

The TPS7A20L12PDQNR is a low-dropout (LDO) linear voltage regulator from Texas Instruments, offering a fixed output voltage of 1.2V with a maximum output current of 300mA. Housed in a compact 4-pin X2SON package (1mm x 1mm), it is designed for space-constrained applications requiring high efficiency and low noise. The device features a low dropout voltage of typically 120mV at full load, enabling operation with minimal headroom. With an ultra-low quiescent current of 1µA (typical) and a shutdown current of 0.1µA, it is ideal for battery-powered and portable electronics. The TPS7A20L12PDQNR also includes overcurrent and overtemperature protection, ensuring reliable performance in demanding environments.

Detailed Technical Specifications

Key Features

• Ultra-low quiescent current: 1µA (typical) extends battery life
• Low dropout voltage: 120mV at 300mA maximizes efficiency
• High PSRR: 60dB at 1kHz for clean power delivery
• Low output noise: 12µVrms ideal for noise-sensitive circuits
• Stable with small ceramic capacitors (1µF typical)
• Overcurrent and overtemperature protection
• Small footprint: 4-X2SON package (1mm x 1mm) saves board space

Target Applications

• 5G base stations: Powering RF transceivers and PLLs requiring low noise
• Automotive dashboard: Supply for infotainment processors and sensors
• Wearable devices: Smartwatches, fitness trackers with tight power budgets
• IoT modules: Battery-powered sensors and wireless MCUs
• Portable medical devices: Glucose monitors, pulse oximeters
• Industrial sensors: Low-power data loggers and transmitters

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS7A20L12PDQNR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
