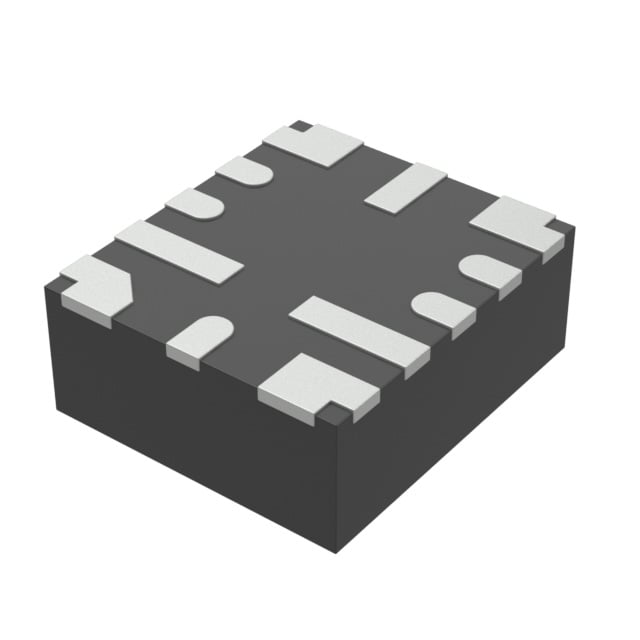

TPS7A5401RPST TI LDO Regulator | 12-VQFN-HR (2.2x2.5) | 500mA, 1.5μVrms Noise

Product Overview

The TPS7A5401RPST from Texas Instruments is a high-performance, low-dropout (LDO) linear voltage regulator designed for noise-sensitive applications. It delivers up to 500 mA of output current with an ultra-low output noise of 1.5 μVrms (10 Hz to 100 kHz) and a high power supply rejection ratio (PSRR) of 45 dB at 1 MHz. The device operates over a wide input voltage range of 1.4 V to 6.5 V and provides an adjustable output voltage from 0.8 V to 5.5 V. Housed in a compact 12-pin VQFN-HR package (2.2 mm x 2.5 mm), it is ideal for space-constrained applications requiring clean power rails.

Detailed Technical Specifications

Key Features

• Ultra-low output noise: 1.5 μVrms (10 Hz – 100 kHz)
• High PSRR: 45 dB at 1 MHz
• Low dropout voltage: 200 mV at 500 mA
• Low quiescent current: 25 μA
• Adjustable output voltage from 0.8 V to 5.5 V
• Stable with ceramic output capacitors (≥ 2.2 μF)
• Enable pin for power sequencing
• Overcurrent and overtemperature protection
• Small footprint: 2.2 mm x 2.5 mm VQFN-HR package

Target Applications

• 5G base stations: Powering RF transceivers and PLLs (e.g., TI's LMX2594)
• Automotive dashboard: Clean supply for infotainment processors (e.g., TI's DRA74x)
• Medical imaging: Noise-sensitive analog front-ends (e.g., TI's AFE5808)
• Industrial sensors: Precision ADC reference (e.g., TI's ADS1261)
• Portable audio: Powering DACs and amplifiers (e.g., TI's PCM5242)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS7A5401RPST. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
