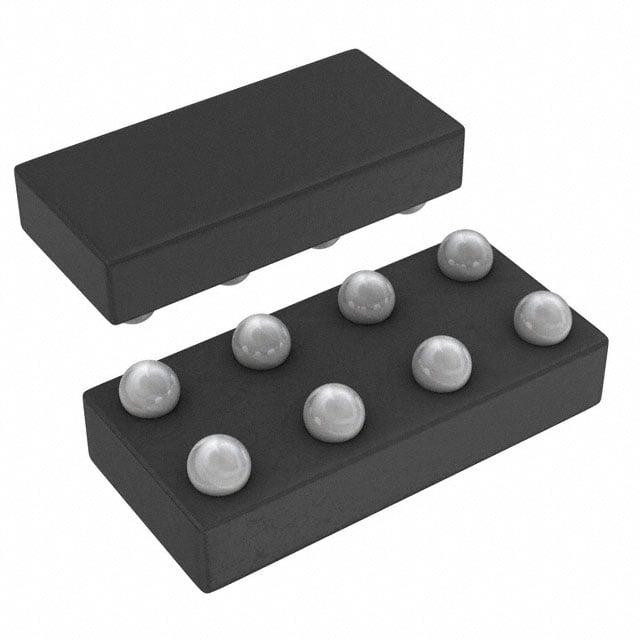

TS5A2066YZPR TI Analog Switch IC | 8-DSBGA | 0.4-Ohm Ron, 1.8V-5.5V

Product Overview

The TS5A2066YZPR is a high-performance, single-pole double-throw (SPDT) analog switch from Texas Instruments, designed for precision signal routing in low-voltage applications. Housed in a compact 8-DSBGA package, this device offers ultra-low on-state resistance (0.4 Ω typical) and wide operating voltage range (1.8V to 5.5V), making it ideal for portable and battery-powered equipment. The switch features break-before-make switching, ensuring no momentary shorting between channels. With low power consumption and high ESD protection (2 kV HBM), the TS5A2066YZPR delivers reliable performance in demanding environments.

Detailed Technical Specifications

Key Features

• Ultra-low on-state resistance (0.4 Ω) minimizes signal distortion
• Wide supply voltage range (1.8V to 5.5V) supports various logic levels
• Break-before-make switching prevents channel cross-conduction
• High bandwidth (100 MHz) suitable for audio and video signals
• Low power consumption (0.1 μA typical supply current)
• Small 8-DSBGA package saves board space
• ESD protection up to 2 kV HBM enhances robustness

Target Applications

• Portable and battery-powered devices (e.g., smartphones, tablets)
• Audio signal routing in consumer electronics (e.g., headphones, speakers)
• Data acquisition systems (e.g., multichannel sensors)
• Communication infrastructure (e.g., 5G base station control boards)
• Automotive infotainment (e.g., dashboard display switching)
• Medical devices (e.g., portable diagnostic equipment)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TS5A2066YZPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
