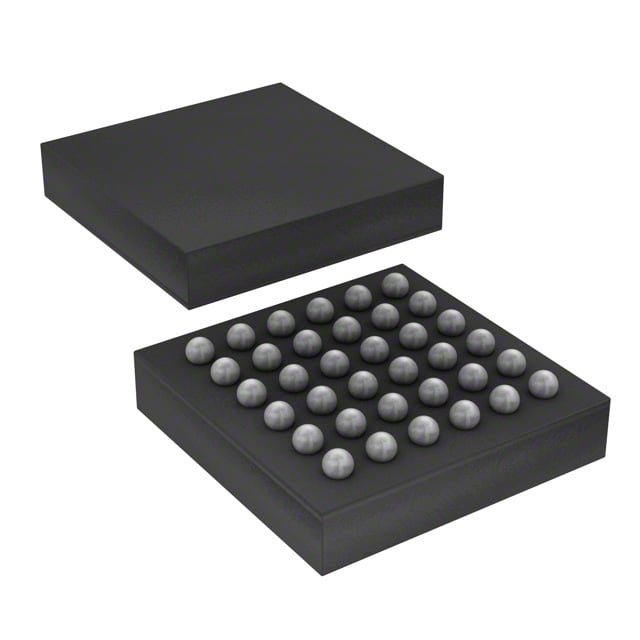

TS5MP645YFPR TI Multiplexer | 36-DSBGA | 6-Channel, 5V, 10Ω

Product Overview

The TS5MP645YFPR from Texas Instruments is a high-performance 6-channel analog multiplexer/demultiplexer designed for precision signal routing in demanding applications. Housed in a compact 36-ball DSBGA package (0.4mm pitch), it offers low on-state resistance (10Ω typical) and wide operating voltage range (1.65V to 5.5V). This device ensures minimal signal distortion and is ideal for multi-channel data acquisition, audio switching, and communication systems.

Detailed Technical Specifications

Key Features

• Low on-state resistance (10Ω) minimizes signal attenuation
• Wide supply voltage range supports both 3.3V and 5V systems
• High bandwidth (100 MHz) suitable for video and RF signals
• Fast switching speeds (15 ns) for high-speed data routing
• Break-before-make switching prevents signal contention
• Low power consumption (1μA max standby current)
• ESD protection (2 kV HBM)

Target Applications

• 5G base station: RF signal routing in beamforming modules
• Automotive dashboard: Audio source selection and sensor data multiplexing
• Industrial automation: Multi-sensor data acquisition systems
• Medical imaging: Ultrasound signal channel switching
• Test and measurement: Automated test equipment (ATE) signal routing

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TS5MP645YFPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TS5MP645YFPR 是德州儀器（TI）推出的一款高性能6通道模擬多路復用器/解復用器，專為精密信號路由設計。採用緊湊的36球DSBGA封裝（0.4mm間距），具有低導通電阻（典型值10Ω）和寬工作電壓範圍（1.65V至5.5V）。該器件確保最小信號失真，適用於多通道數據採集、音頻切換和通信系統。

詳細技術參數

核心特性

• 低導通電阻（10Ω）減少信號衰減
• 寬電源電壓範圍支持3.3V和5V系統
• 高帶寬（100 MHz）適用於視頻和射頻信號
• 快速開關速度（15 ns）適用於高速數據路由
• 先斷後合開關防止信號衝突
• 低功耗（待機電流最大1μA）
• ESD保護（2 kV HBM）

典型應用場景

• 5G基站：波束成形模塊中的射頻信號路由
• 汽車儀表盤：音頻源選擇和傳感器數據多路復用
• 工業自動化：多傳感器數據採集系統
• 醫療成像：超聲信號通道切換
• 測試測量：自動測試設備（ATE）信號路由

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TS5MP645YFPR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
