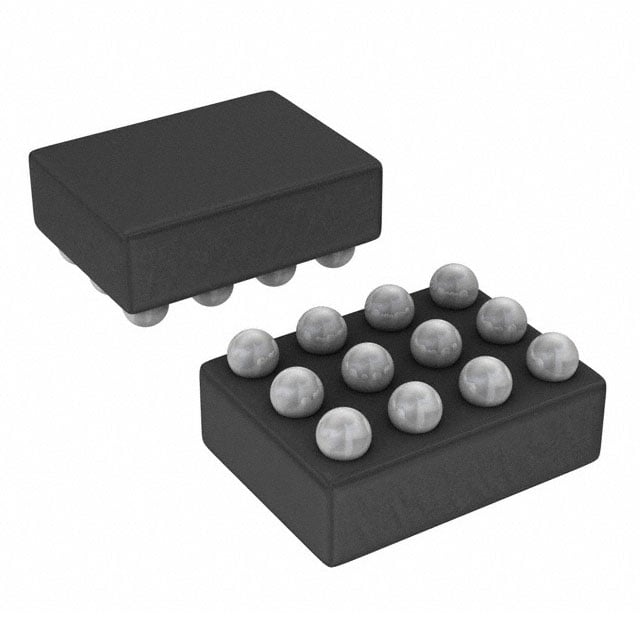

TS5USBC400IYFPT TI USB Type-C Switch | 12-DSBGA | 2:1 Mux, 5V, 10Gbps

Product Overview

The TS5USBC400IYFPT is a high-performance USB Type-C switch from Texas Instruments, designed to support USB 3.1 Gen 2 data rates up to 10 Gbps. It integrates a 2:1 multiplexer/demultiplexer for USB SuperSpeed signals and also handles sideband signals (SBU) for alternate modes such as DisplayPort. The device operates over a wide supply voltage range of 2.3V to 5.5V, making it suitable for battery-powered and USB-powered applications. Packaged in a compact 12-DSBGA (0.4mm pitch), it is ideal for space-constrained designs in consumer electronics, computing, and industrial applications.

Detailed Technical Specifications

Key Features

• Supports USB 3.1 Gen 2 (10 Gbps) and USB 2.0
• Low on-state resistance (5 Ω) minimizes signal attenuation
• High bandwidth (8.5 GHz) ensures signal integrity
• Integrated SBU switch for alternate modes (e.g., DisplayPort)
• Wide supply voltage range (2.3V to 5.5V) for flexibility
• Robust ESD protection (8 kV contact, 15 kV air)
• Ultra-small 12-DSBGA package saves board space
• Low power consumption (active: 0.5 mA, shutdown: <1 μA)

Target Applications

• Smartphones and tablets (e.g., Samsung Galaxy S series, iPad Pro)
• Laptops and ultrabooks (e.g., Dell XPS 13, MacBook Air)
• Docking stations and USB hubs (e.g., CalDigit TS4, Anker PowerExpand)
• 5G base stations (e.g., Nokia AirScale, Ericsson Radio System)
• Automotive infotainment and dashboard (e.g., Tesla Model 3 center display)
• Industrial cameras and embedded systems (e.g., Basler ace, NVIDIA Jetson)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TS5USBC400IYFPT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
