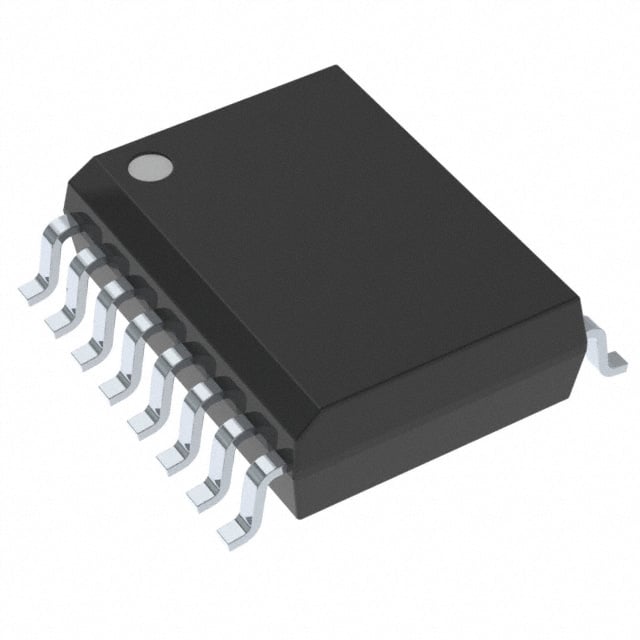

TS5V330CDBQR TI Video Switch | 16-SSOP | 4-Ch SPDT, 10Ω, 300MHz

Product Overview

The TS5V330CDBQR is a high-performance 4-channel single-pole double-throw (SPDT) analog switch from Texas Instruments, designed for video signal routing and switching applications. Housed in a compact 16-SSOP package, this device offers low on-state resistance (10Ω typical) and wide bandwidth (300MHz), making it ideal for high-speed video and data switching. It operates over a supply voltage range of 4.5V to 5.5V and features bidirectional signal flow, low crosstalk, and high off-isolation.

Detailed Technical Specifications

Key Features

• Low on-state resistance (10Ω typical) minimizes signal attenuation
• Wide bandwidth (300MHz) supports high-resolution video formats
• Low crosstalk and high off-isolation ensure signal integrity
• Bidirectional signal routing simplifies design
• Single-supply operation (4.5V to 5.5V)
• ESD protection (2kV HBM)
• RoHS compliant and lead-free

Target Applications

• Video signal switching in 5G base stations (e.g., video matrix routing)
• Dashboard display systems in automotive infotainment
• High-definition multimedia interface (HDMI) switching
• Professional video surveillance systems (e.g., DVR/NVR)
• Test and measurement equipment for video signal routing
