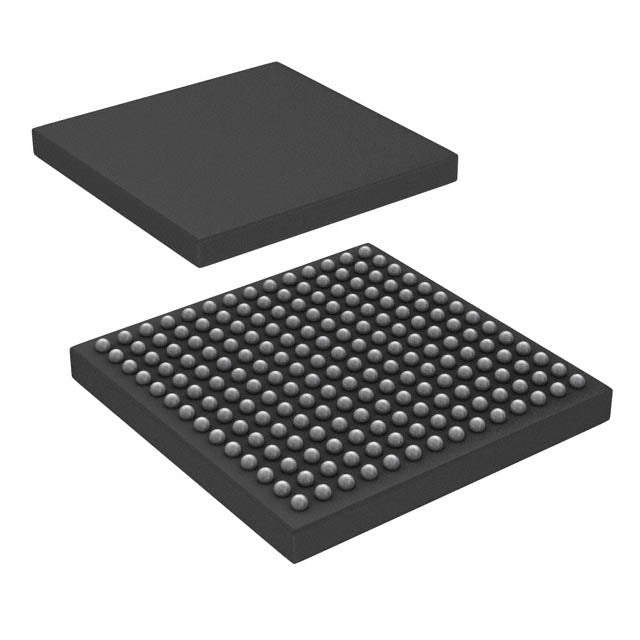

TSB43DB42ZHC TI IEEE 1394b Controller | 196-BGAMICROSTAR (15x15) | 800 Mbps, 3.3V

Product Overview

The TSB43DB42ZHC is a high-performance IEEE 1394b (FireWire 800) physical layer and link layer controller from Texas Instruments. It integrates a 1394b PHY and a 1394 OHCI link layer in a single 196-ball BGA MICROSTAR package (15x15 mm). The device supports data rates up to 800 Mbps and is compliant with IEEE 1394b-2002 and 1394a-2000 standards. It operates from a 3.3V supply and features low power consumption, making it suitable for a wide range of high-speed serial bus applications.

Detailed Technical Specifications

Key Features

• Integrated 1394b PHY and OHCI link layer
• Supports 800 Mbps (S800) data rate
• Backward compatible with 1394a at 400/200/100 Mbps
• Low power 3.3V operation
• On-chip PLL for clock generation
• Supports isochronous and asynchronous data transfer
• Advanced power management with suspend/resume
• Small footprint 196-ball BGA package

Target Applications

The TSB43DB42ZHC is ideal for high-speed data transfer applications requiring reliable, low-latency connectivity. Specific product examples include:

• 5G base stations for high-speed backhaul and control data
• Automotive infotainment and dashboard systems for camera and sensor data
• Professional video cameras and editing equipment
• Industrial machine vision systems
• Medical imaging devices (ultrasound, endoscopy)
• Consumer electronics (external hard drives, DVRs)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSB43DB42ZHC. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
