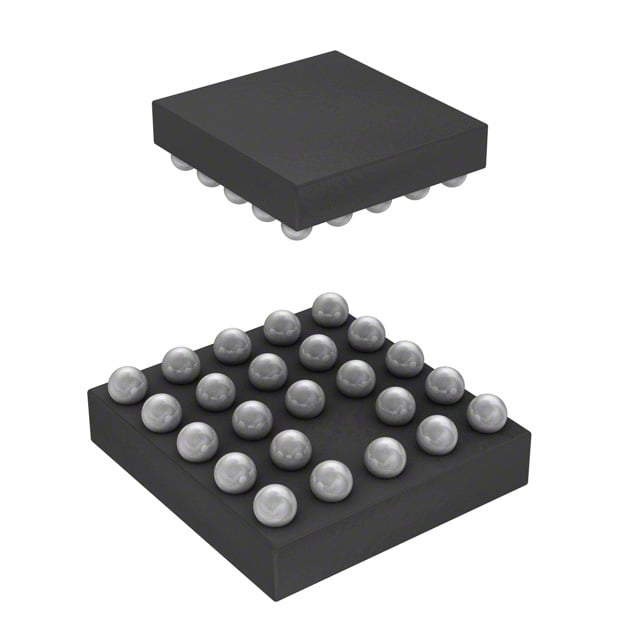

TSC2004IYZKT TI Touch Screen Controller | 24-DSBGA (2.57x2.57) | 4-Wire, I2C

Product Overview

The TSC2004IYZKT is a low-power, 4-wire resistive touch screen controller from Texas Instruments. It features an I2C interface, operates from 1.2V to 3.6V, and includes an integrated 12-bit ADC. The device is designed for portable applications requiring high accuracy and low power consumption. It supports touch pressure measurement and includes a programmable threshold interrupt.

Detailed Technical Specifications

Key Features

• Low power consumption: 0.5 mW typical
• Wide supply voltage range: 1.2V to 3.6V
• I2C interface with up to 400 kHz clock
• 12-bit SAR ADC for accurate touch position
• Touch pressure measurement capability
• Programmable threshold interrupt for touch detection
• Small 24-DSBGA package (2.57x2.57 mm)
• Operating temperature range: -40°C to +85°C

Target Applications

• Smartphones and tablets
• Portable media players
• GPS navigation devices
• Point-of-sale terminals
• Industrial control panels
• Medical devices (e.g., patient monitors)
• Automotive infotainment systems (e.g., dashboard touch screens)
• 5G base station control interfaces

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSC2004IYZKT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TSC2004IYZKT 是德州儀器（TI）推出的一款低功耗、4線電阻式觸摸屏控制器。它採用 I2C 接口，工作電壓範圍為 1.2V 至 3.6V，並集成 12 位 ADC。該器件專為需要高精度和低功耗的便攜式應用而設計，支持觸摸壓力測量，並包含可編程閾值中斷。

詳細技術參數

核心特性

• 低功耗：典型值 0.5 mW
• 寬電壓範圍：1.2V 至 3.6V
• I2C 接口，時鐘最高 400 kHz
• 12 位 SAR ADC，精確觸摸定位
• 支持觸摸壓力測量
• 可編程閾值中斷，用於觸摸檢測
• 小巧的 24-DSBGA 封裝（2.57x2.57 mm）
• 工作溫度範圍：-40°C 至 +85°C

典型應用場景

• 智能手機和平板電腦
• 便攜式媒體播放器
• GPS 導航設備
• 銷售點終端
• 工業控制面板
• 醫療設備（如病人監護儀）
• 汽車信息娛樂系統（如儀表盤觸摸屏）
• 5G 基站控制接口

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TSC2004IYZKT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
