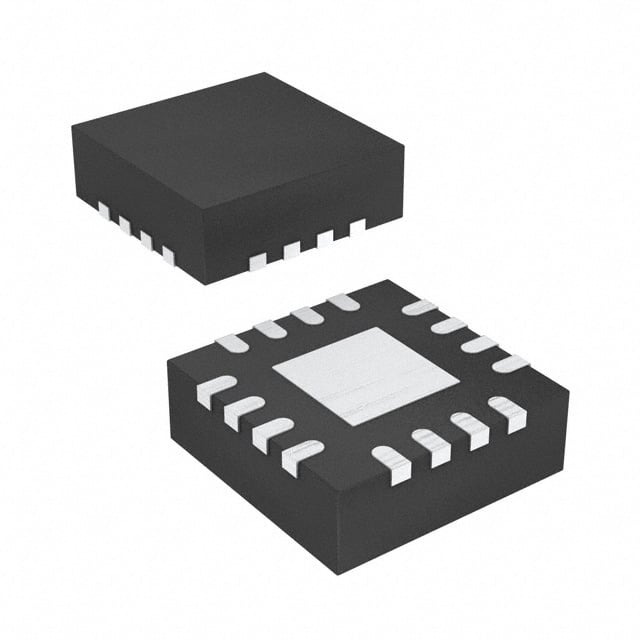

TSC2046IRGVRG4 TI Touch Screen Controller | 16-VQFN(4x4) | 12-bit, 4-Wire

Product Overview

The TSC2046IRGVRG4 is a low-power, 12-bit, 4-wire resistive touch screen controller from Texas Instruments. It features a 2.5V to 5.25V supply range, an internal 2.5V reference, and a serial interface. The device is designed for battery-powered systems and offers excellent pressure measurement and touch detection.

Detailed Technical Specifications

Key Features

• 12-bit SAR ADC with programmable conversion rate
• Low power: 0.5 mW typical at 2.7V
• Built-in touch detection and pressure measurement
• Automatic power-down after conversion
• SPI-compatible serial interface
• Small 4x4 mm QFN package

Target Applications

• Portable media players and smartphones
• GPS navigation systems
• Point-of-sale (POS) terminals
• Industrial control panels
• Medical devices (e.g., patient monitoring touchscreens)
• Automotive infotainment displays
• 5G base station control interfaces
• Smart home control panels

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSC2046IRGVRG4. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TSC2046IRGVRG4 是德州儀器推出的一款低功耗、12位、4線電阻式觸摸屏控制器。它支持 2.5V 至 5.25V 的電源範圍，內置 2.5V 參考電壓，並採用串行接口。該器件專為電池供電系統設計，提供出色的壓力測量和觸摸檢測功能。

詳細技術參數

核心特性

• 12位 SAR ADC，可編程轉換速率
• 低功耗：2.7V 時典型值 0.5 mW
• 內置觸摸檢測和壓力測量
• 轉換後自動關斷
• SPI 兼容串行接口
• 小型 4x4 mm QFN 封裝

典型應用場景

• 便攜式媒體播放器和智能手機
• GPS 導航系統
• 銷售點（POS）終端
• 工業控制面板
• 醫療設備（如病人監護觸摸屏）
• 汽車信息娛樂顯示屏
• 5G 基站控制接口
• 智能家居控制面板

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TSC2046IRGVRG4 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
