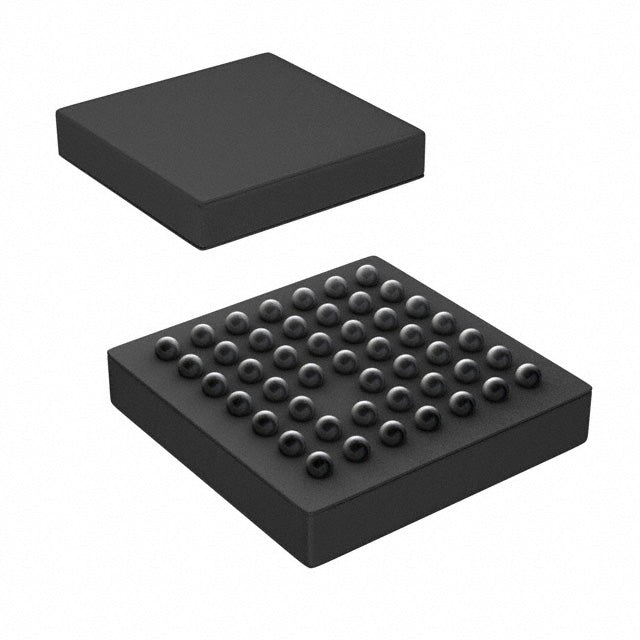

TSC2046IZQCR-90 TI Touch Screen Controller | 48-BGAMICROSTARJUNIOR (4x4) | 4-Wire, 12-Bit

Product Overview

The TSC2046IZQCR-90 is a low-power, 4-wire resistive touch screen controller from Texas Instruments. It features a 12-bit resolution successive approximation register (SAR) A/D converter and operates from a single 2.2V to 5.25V supply. The device includes a touch screen driver, a reference, and a serial interface. It is designed for battery-powered systems such as personal digital assistants (PDAs), smart phones, and other portable equipment.

Detailed Technical Specifications

Key Features

• Single-supply operation (2.2V to 5.25V)
• 12-bit SAR ADC with programmable conversion rate
• On-chip touch screen drivers for 4-wire resistive panels
• Low power: 0.5 mW typical at 2.7V
• SPI-compatible serial interface
• Internal reference (2.5V) or external reference
• Battery measurement input (up to 6V)
• Temperature measurement capability
• Shutdown mode for power saving

Target Applications

• Portable devices: smartphones, tablets, PDAs
• Point-of-sale (POS) terminals
• Industrial control panels
• Medical devices: patient monitors, infusion pumps
• Automotive infotainment systems
• 5G base station control interfaces
• Dashboard touch screens

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSC2046IZQCR-90. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
