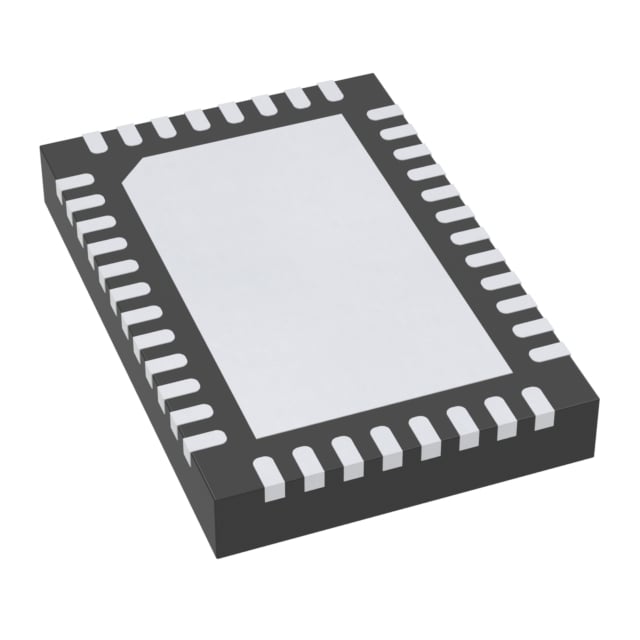

TUSB546-DCIRNQR TI USB Type-C Redriver | 40-WQFN (6x4) | 10Gbps, 2-Lane

Product Overview

The TUSB546-DCIRNQR is a high-performance USB Type-C redriver from Texas Instruments, designed to support USB 3.2 Gen 2 (10 Gbps) and DisplayPort 1.4 (HBR3) alternate mode. It features a 2-lane switch and redriver functionality, enabling seamless signal conditioning and switching for USB-C connectors. The device is housed in a compact 40-pin WQFN (6x4 mm) package, making it ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Supports USB 3.2 Gen 2 and DisplayPort 1.4 alternate mode
• Integrated redriver with equalization and de-emphasis
• Low power consumption: < 500 mW typical
• Automatic direction detection and switching
• I2C interface for configuration and status monitoring
• Pin-to-pin compatible with TUSB546 family

Target Applications

• 5G base stations (e.g., Nokia AirScale, Ericsson Radio System)
• Automotive infotainment and dashboard systems (e.g., Tesla Model 3 center display)
• Docking stations and USB-C hubs (e.g., Dell WD19TB)
• Notebook and tablet USB-C ports (e.g., MacBook Pro, iPad Pro)
• Industrial cameras and machine vision systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TUSB546-DCIRNQR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
