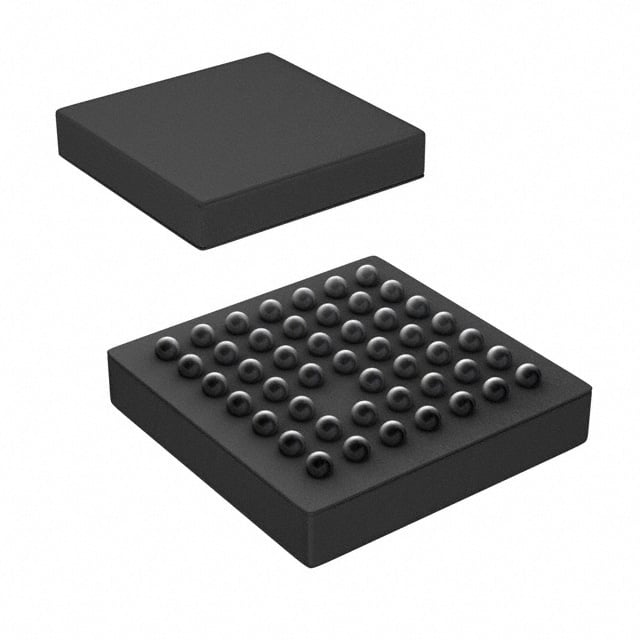

TVP5150AM1IZQC TI Video Decoder | 48-BGA MICROSTAR JUNIOR (4x4) | NTSC/PAL, 9-bit ADC

Product Overview

The TVP5150AM1IZQC is a high-performance video decoder from Texas Instruments, designed to convert analog composite video signals into digital video data. It supports NTSC/PAL/SECAM standards and features a 9-bit analog-to-digital converter (ADC) with 2× oversampling. The device is housed in a compact 48-ball BGA MICROSTAR JUNIOR (4x4 mm) package, making it ideal for space-constrained applications. It provides a glueless interface to popular video controllers and supports both ITU-R BT.656 and 8-bit 4:2:2 YCbCr output formats.

Detailed Technical Specifications

Key Features

• Supports multiple analog video standards (NTSC, PAL, SECAM)
• 9-bit ADC with 2× oversampling for high-quality digitization
• Automatic detection of video standard and field frequency
• Built-in comb filter for luminance/chrominance separation
• Programmable brightness, contrast, saturation, and hue
• Glueless interface to video controllers and DSPs
• Low power consumption (150 mW typical)
• Compact 48-ball BGA package (4x4 mm)

Target Applications

• Automotive: Dashboard cameras, rearview cameras, infotainment systems
• Security: Analog surveillance cameras, DVRs
• Industrial: Machine vision systems, video inspection
• Consumer: Video capture cards, TV tuners
• Medical: Endoscopy equipment, video processing

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TVP5150AM1IZQC. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TVP5150AM1IZQC 是德州儀器（TI）推出的一款高性能視頻解碼器，可將模擬複合視頻信號轉換為數字視頻數據。它支持 NTSC/PAL/SECAM 標準，並配備 9 位模數轉換器（ADC），具有 2 倍過採樣功能。該器件採用緊湊的 48 球 BGA MICROSTAR JUNIOR（4x4 mm）封裝，非常適合空間受限的應用。它提供與主流視頻控制器的無縫接口，並支持 ITU-R BT.656 和 8 位 4:2:2 YCbCr 輸出格式。

詳細技術參數

核心特性

• 支持多種模擬視頻標準（NTSC、PAL、SECAM）
• 9 位 ADC 搭配 2 倍過採樣，實現高質量數字化
• 自動檢測視頻標準和場頻
• 內置梳狀濾波器，實現亮度/色度分離
• 可編程亮度、對比度、飽和度和色調
• 與視頻控制器和 DSP 的無縫接口
• 低功耗（典型 150 mW）
• 緊湊的 48 球 BGA 封裝（4x4 mm）

典型應用場景

• 汽車：行車記錄儀、倒車攝像頭、信息娛樂系統
• 安防：模擬監控攝像頭、DVR
• 工業：機器視覺系統、視頻檢測
• 消費：視頻採集卡、電視調諧器
• 醫療：內窺鏡設備、視頻處理

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TVP5150AM1IZQC 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
