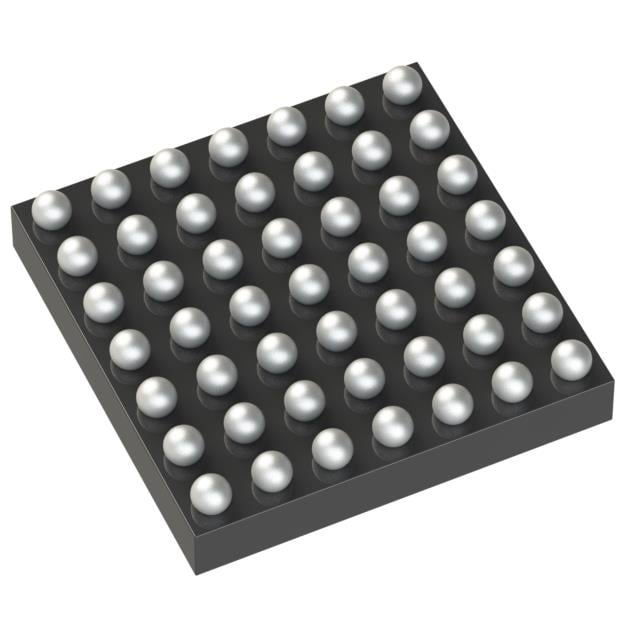

TWL1200YFFR TI RF Front End | 49-DSBGA (2.8X2.8) | 2.4GHz, 802.11b/g/n

Product Overview

The TWL1200YFFR from Texas Instruments is a highly integrated RF front-end module designed for 2.4 GHz WLAN applications. It combines a power amplifier (PA), low-noise amplifier (LNA), and antenna switch in a compact 49-ball DSBGA package (2.8 mm x 2.8 mm). This device supports IEEE 802.11b/g/n standards and is optimized for low power consumption and high linearity, making it ideal for battery-powered wireless devices.

Detailed Technical Specifications

Key Features

• Integrated PA, LNA, and antenna switch
• Low current consumption: 160 mA in Tx mode (802.11g, 18 dBm)
• High linearity: meets 802.11b/g/n spectral mask
• Small footprint: 2.8 mm x 2.8 mm DSBGA package
• Built-in power detector for closed-loop power control
• RoHS compliant

Target Applications

• Wireless routers and access points (e.g., TP-Link Archer C7)
• IoT gateways (e.g., Raspberry Pi with Wi-Fi dongle)
• Smart home devices (e.g., Amazon Echo, smart thermostats)
• Industrial wireless sensors
• Portable consumer electronics (e.g., smartphones, tablets)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TWL1200YFFR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TWL1200YFFR 是德州儀器推出的一款高度集成的射頻前端模組，專為 2.4 GHz WLAN 應用設計。它將功率放大器（PA）、低噪聲放大器（LNA）和天線開關集成在一個緊湊的 49 球 DSBGA 封裝（2.8 mm x 2.8 mm）中。該器件支持 IEEE 802.11b/g/n 標準，並針對低功耗和高線性度進行了優化，非常適合電池供電的無線設備。

詳細技術參數

核心特性

• 集成 PA、LNA 和天線開關
• 低電流消耗：發射模式 (802.11g, 18 dBm) 下 160 mA
• 高線性度：滿足 802.11b/g/n 頻譜模板
• 小尺寸：2.8 mm x 2.8 mm DSBGA 封裝
• 內置功率檢測器，用於閉環功率控制
• 符合 RoHS 標準

典型應用場景

• 無線路由器和接入點（例如 TP-Link Archer C7）
• 物聯網網關（例如帶 Wi-Fi 適配器的 Raspberry Pi）
• 智能家居設備（例如 Amazon Echo、智能恆溫器）
• 工業無線傳感器
• 便攜式消費電子產品（例如智能手機、平板電腦）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TWL1200YFFR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
