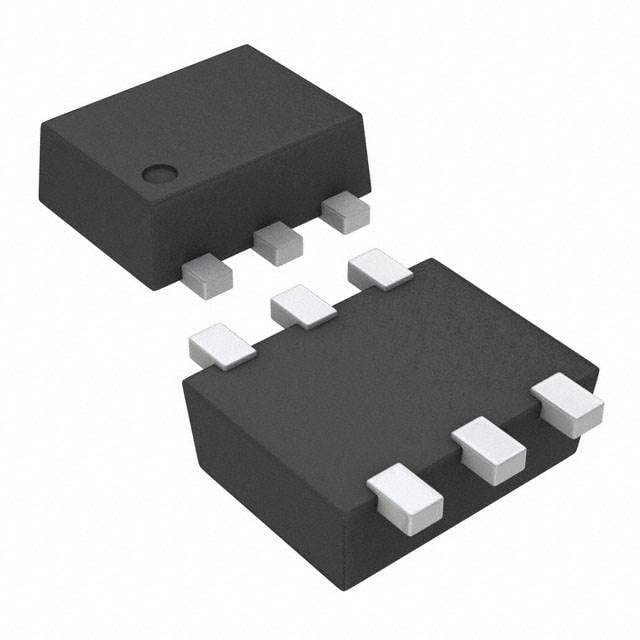

TXB0101DRLT TI Voltage Level Translator | SOT-5X3 | 1.2V-3.6V, 1.65V-5.5V

Product Overview

The TXB0101DRLT from Texas Instruments is a 1-bit bidirectional voltage-level translator designed for open-drain and push-pull applications. It operates with a wide voltage range on the A port (1.2V to 3.6V) and B port (1.65V to 5.5V), making it ideal for interfacing low-voltage ASICs/FPGAs with higher-voltage peripherals. The device features automatic direction sensing, eliminating the need for a direction control pin. Housed in a compact SOT-5X3 package, it is suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Bidirectional voltage translation without direction control
• Supports push-pull and open-drain applications
• Low quiescent current (typical 1.5 µA)
• High data rate up to 100 Mbps
• Small SOT-5X3 package for space-saving
• ESD protection exceeds JESD 22

Target Applications

• 5G base station control interfaces (e.g., FPGA to RF transceiver)
• Automotive dashboard display modules (e.g., MCU to LCD driver)
• Industrial sensor networks (e.g., 3.3V sensor to 1.8V processor)
• Portable electronics (e.g., battery management IC to application processor)
• IoT edge devices (e.g., low-power MCU to cellular module)
