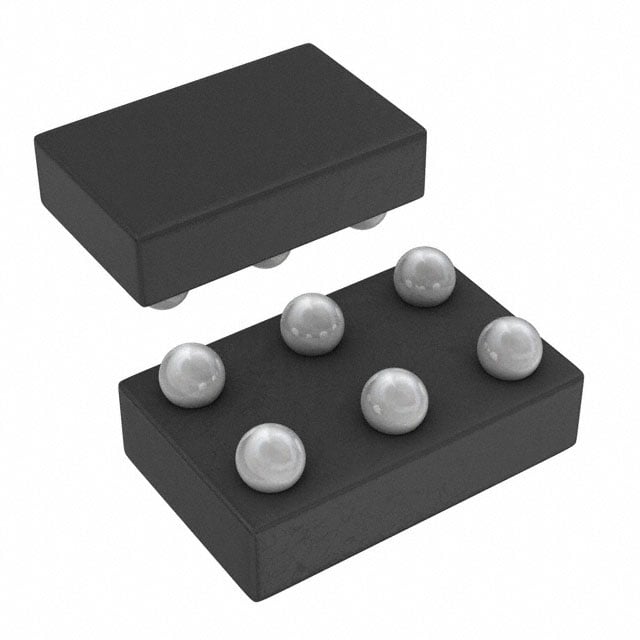

TXB0101YZPR TI Voltage Level Translator | 6-DSBGA | 1.2V-3.6V, 100Mbps

Product Overview

The TXB0101YZPR from Texas Instruments is a 1-bit bidirectional voltage-level translator designed for open-drain and push-pull applications. It operates with a wide voltage range from 1.2V to 3.6V on both A and B ports, enabling seamless communication between different voltage domains. The device supports data rates up to 100 Mbps and is housed in a compact 6-DSBGA package (0.9mm x 1.4mm), making it ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Bidirectional voltage translation without direction control
• Supports mixed-mode voltage operation (1.2V, 1.8V, 2.5V, 3.3V)
• High data rate up to 100 Mbps
• Low quiescent current (5 µA typical)
• Ultra-small 6-DSBGA package saves board space
• Edge-rate accelerator for improved signal integrity

Target Applications

• 5G base stations: Level translation between baseband processor (1.8V) and RF front-end (3.3V)
• Automotive dashboard: Interface between microcontroller (3.3V) and display driver (1.8V)
• Industrial sensors: Connect low-voltage sensor (1.2V) to PLC (3.3V)
• Portable electronics: Battery management IC communication
• IoT modules: SPI/I2C level shifting for sensors
