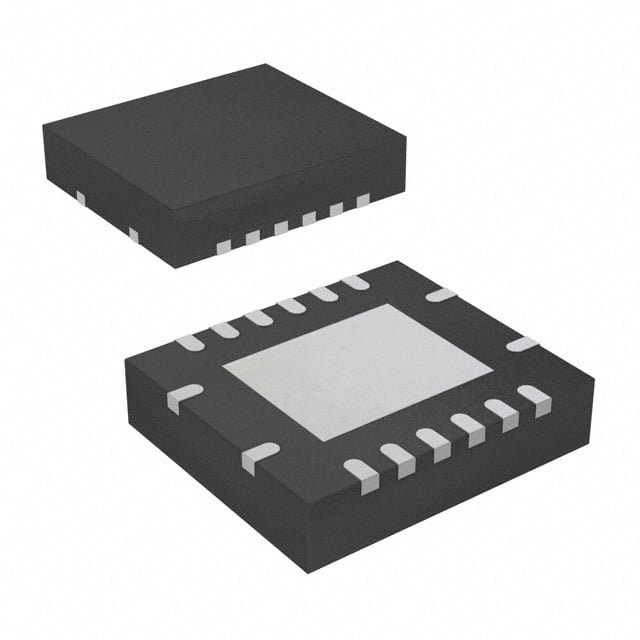

TXB0106RGYR TI Voltage Level Translator | 16-VQFN (4x3.5) | 6-Bit, Auto-Direction

Product Overview

The TXB0106RGYR is a 6-bit bidirectional voltage-level translator from Texas Instruments, designed for mixed-voltage digital systems. It features auto-direction sensing, eliminating the need for direction control pins. The device operates with two separate power-supply rails: VCCA (1.2V to 3.6V) and VCCB (1.65V to 5.5V), enabling seamless translation between low-voltage and high-voltage domains. Housed in a compact 16-pin VQFN (4x3.5mm) package, it is ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Auto-direction sensing: No direction control required
• High data rate: Supports up to 100 Mbps
• Wide voltage range: VCCA 1.2V-3.6V, VCCB 1.65V-5.5V
• Low power consumption: ICCA max 1.5 µA, ICCB max 1.5 µA
• Small package: 16-VQFN (4x3.5mm) for space-saving designs
• ESD protection: ±8 kV HBM on I/O pins

Target Applications

• 5G base stations: Level translation between baseband processor (1.8V) and RF front-end (3.3V)
• Automotive dashboard: Interface between microcontroller (3.3V) and display driver (5V)
• Industrial sensors: Connect low-voltage sensor (1.8V) to PLC (5V)
• Consumer electronics: Smartphone accessory communication (1.8V to 3.3V)
• IoT devices: Bridge between battery-powered MCU (1.2V) and wireless module (3.3V)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TXB0106RGYR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
