TXS0104EYZTR TI Voltage Level Translator | 12-DSBGA (1.9X1.4) | 4-Bit, Auto-Direction

Product Overview

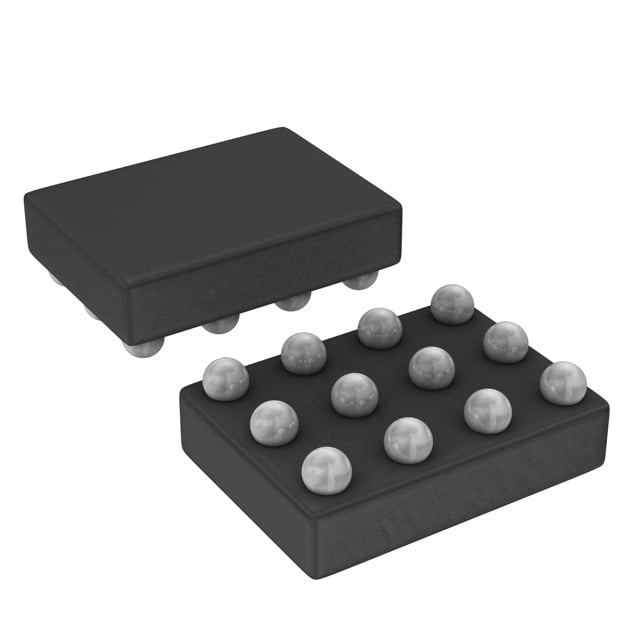

The TXS0104EYZTR from Texas Instruments is a 4-bit bidirectional voltage-level translator designed for open-drain and push-pull applications. It operates with a wide voltage range on both A and B ports (1.2V to 3.6V on A port, 1.65V to 5.5V on B port), enabling seamless communication between different voltage domains. The device features auto-direction sensing, eliminating the need for a direction control pin. Housed in a compact 12-DSBGA (1.9mm x 1.4mm) package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Auto-direction sensing: no direction control pin required
• Supports open-drain and push-pull applications
• Low quiescent current: 1.5 µA typical
• High data rate: up to 24 Mbps for push-pull, 2 Mbps for open-drain
• Small footprint: 12-DSBGA package saves board space
• Glitch-free power sequencing

Target Applications

• 5G base stations: level translation between baseband and RF control interfaces
• Automotive dashboard: bridging 1.8V MCU to 3.3V display modules
• Industrial sensors: connecting 3.3V sensors to 5V PLC inputs
• Consumer electronics: I2C/SMBus level shifting in smartphones and tablets
• IoT devices: interfacing low-power sensors with higher voltage microcontrollers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TXS0104EYZTR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
