TXU0104DTRR TI Voltage Level Translator | 12-X2QFN (1.7x1) | 4-Bit, 1.1-5.5V

Product Overview

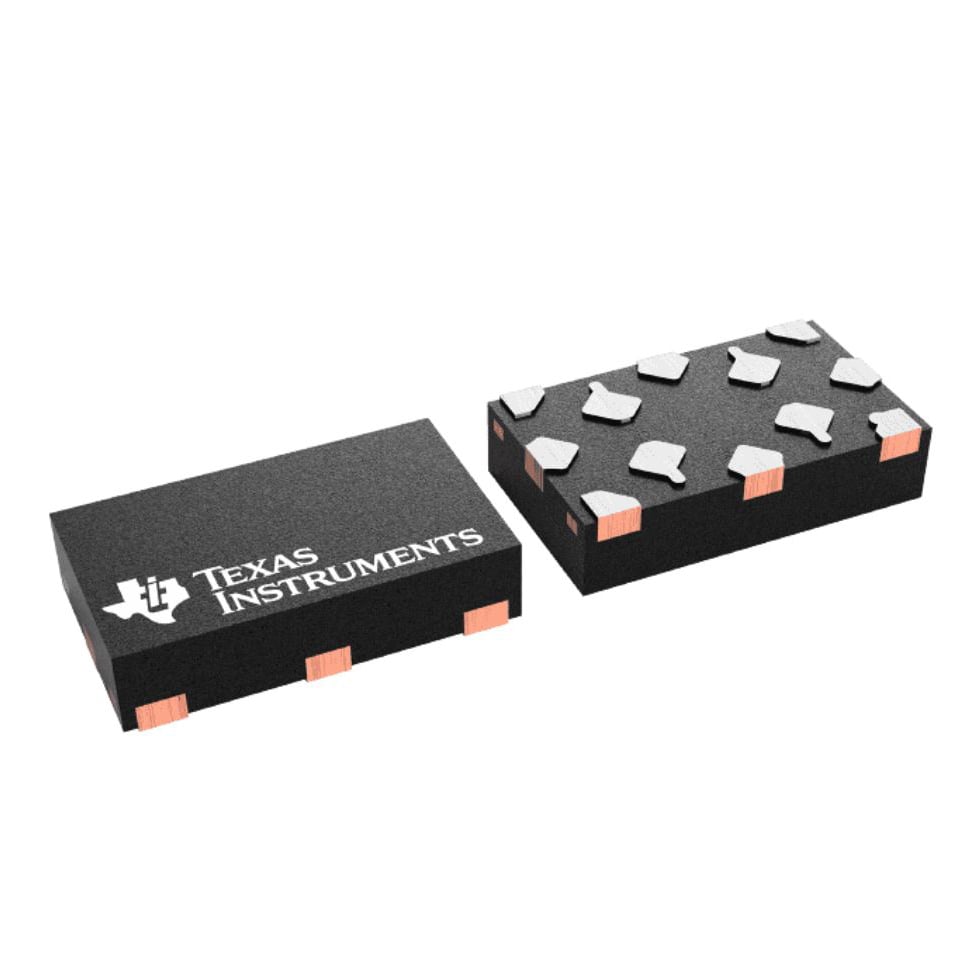

The TXU0104DTRR from Texas Instruments is a 4-bit voltage-level translator designed for bidirectional voltage translation between different logic levels. It supports a wide voltage range from 1.1V to 5.5V on both A and B ports, making it ideal for multi-voltage systems. The device comes in a compact 12-X2QFN (1.7mm x 1mm) package, offering space-saving benefits for dense PCB layouts.

Detailed Technical Specifications

Key Features

• Bidirectional voltage translation without direction control
• Wide supply voltage range: 1.1V to 5.5V on both ports
• High data rate up to 200 Mbps
• Low power consumption with ICC of 5 µA (max)
• Small footprint: 12-X2QFN package (1.7mm x 1mm)
• Robust ESD protection: ±8 kV HBM, ±2 kV CDM
• Supports partial power-down mode (Ioff)

Target Applications

• 5G base stations: Level translation between baseband processors and RF front-end modules
• Automotive dashboard: Interface between microcontroller (3.3V) and display driver (1.8V)
• Industrial sensors: Connect 5V sensors to 3.3V or 1.8V logic
• Consumer electronics: Smartphones, tablets, and wearables for I2C/SPI level shifting
• Networking equipment: Router and switch interfaces between different voltage domains

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TXU0104DTRR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
