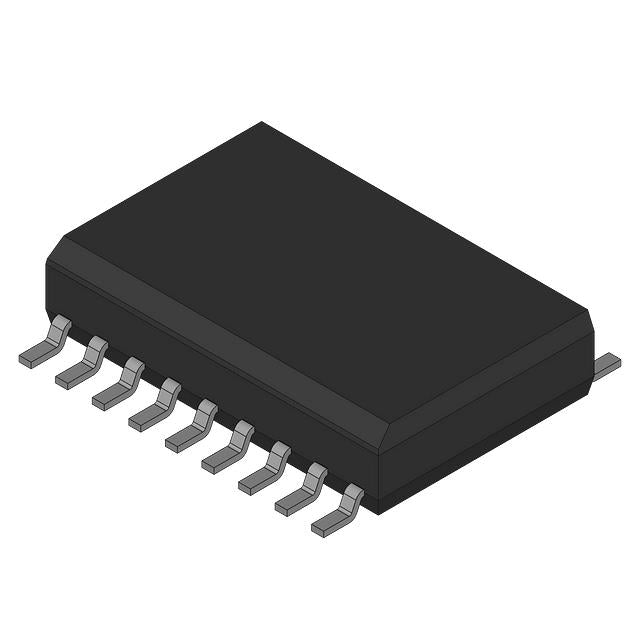

UC2870DW-1 TI Power Management IC | | 1.5A Output, 4.5V-40V Input

Product Overview

The UC2870DW-1 from Texas Instruments is a high-performance, current-mode PWM controller designed for off-line and DC-to-DC converter applications. It integrates a 1.5A peak gate drive, making it suitable for medium-power supplies. The device operates over a wide input voltage range of 4.5V to 40V and provides precise regulation with minimal external components. Its robust protection features include cycle-by-cycle current limiting, undervoltage lockout, and thermal shutdown, ensuring reliable operation in demanding environments.

Detailed Technical Specifications

Key Features

• Current-mode control for improved transient response
• 1.5A peak gate drive for external MOSFET
• Wide input voltage range: 4.5V to 40V
• Programmable switching frequency up to 500 kHz
• Internal 5V reference with ±1% accuracy
• Low startup current: 100 µA typical
• Comprehensive protection: UVLO, overcurrent, thermal shutdown

Target Applications

• AC-DC adapters for consumer electronics
• Isolated DC-DC converters for telecom and 5G base stations
• Industrial power supplies for automation equipment
• Automotive power systems (e.g., infotainment, dashboard displays)
• LED lighting drivers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for UC2870DW-1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
