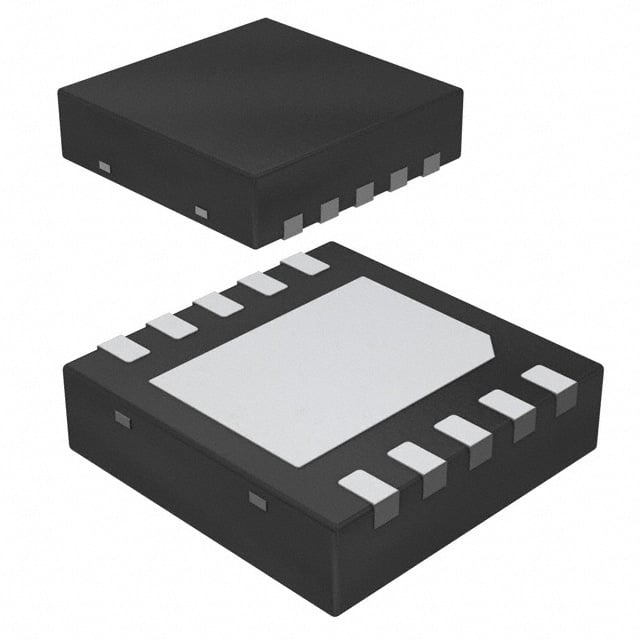

UCC27201ADPRT TI Gate Driver | 10-WSON (4x4) | 4A Peak, 120V Bootstrap

Product Overview

The UCC27201ADPRT from Texas Instruments is a high-frequency, high-voltage gate driver designed for driving N-channel MOSFETs in half-bridge and full-bridge configurations. With a 120V bootstrap rating and 4A peak source/sink current, it enables efficient power conversion in applications such as DC-DC converters, motor drives, and Class-D audio amplifiers. The 10-WSON (4x4) package offers a compact footprint for space-constrained designs.

Detailed Technical Specifications

Key Features

• 120V bootstrap voltage rating for high-side drive
• 4A peak gate drive current for fast switching
• 20 ns typical propagation delay for high-frequency operation
• Under-voltage lockout (UVLO) on VDD and VB
• Cross-conduction prevention logic
• Wide operating temperature range
• Small 10-WSON package for compact designs

Target Applications

• 5G base station power supplies (e.g., 48V to 12V DC-DC converters)
• Automotive dashboard displays (backlight LED drivers)
• Industrial motor drives (e.g., 3-phase BLDC motors)
• Class-D audio amplifiers for home theater systems
• Solar microinverters and MPPT converters
