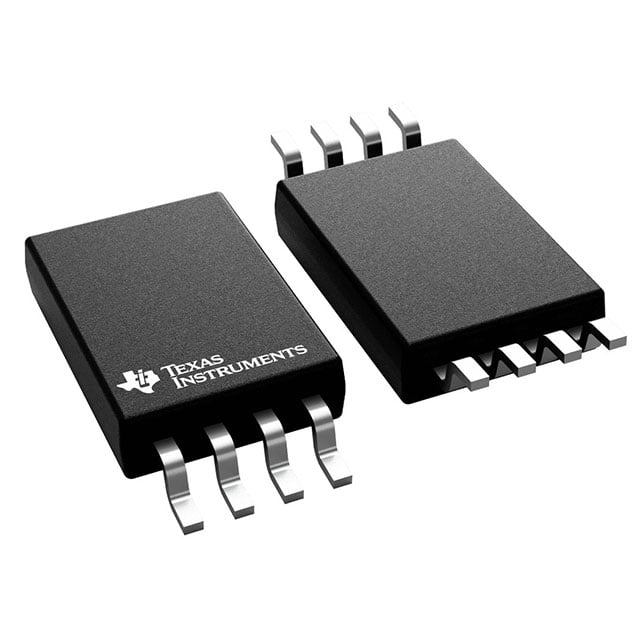

UCC3972PWTR TI CCFL Controller | 8-TSSOP | 4.5V-20V, 300kHz

Product Overview

The UCC3972PWTR from Texas Instruments is a high-performance CCFL (Cold Cathode Fluorescent Lamp) controller designed for backlighting applications. It operates from a supply voltage range of 4.5V to 20V and features a push-pull topology with a maximum switching frequency of 300kHz. The device is housed in a compact 8-pin TSSOP package, making it ideal for space-constrained designs. With integrated lamp current regulation and fault protection, the UCC3972PWTR ensures reliable and efficient operation in various lighting systems.

Detailed Technical Specifications

Key Features

• Wide input voltage range: 4.5V to 20V
• High switching frequency up to 300kHz for smaller magnetics
• Integrated lamp current regulation for consistent brightness
• Overvoltage and overcurrent protection
• Low shutdown current: <1μA
• Compact 8-TSSOP package

Target Applications

• LCD backlighting for industrial displays and medical equipment
• Automotive dashboard backlighting
• Portable device backlighting (e.g., GPS units, handheld instruments)
• 5G base station status indicator backlighting
• General-purpose CCFL lighting systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for UCC3972PWTR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
