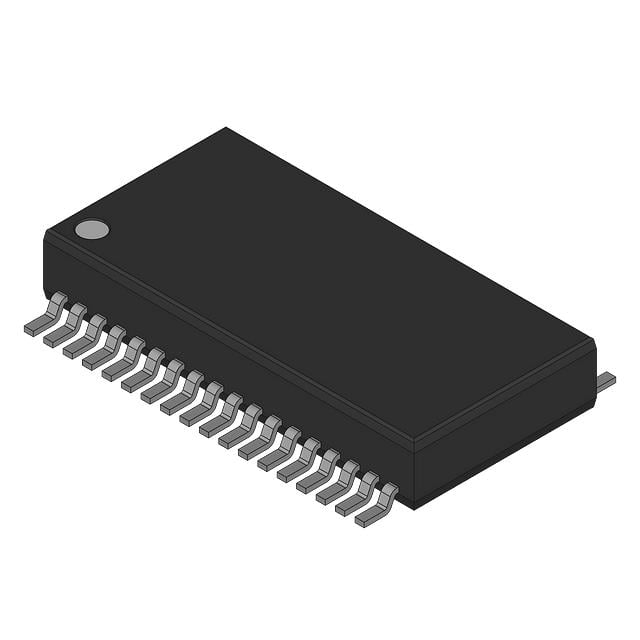

UCC5630MWPTR TI SCSI Terminator | 9-Channel, 110Ω, 3.3V

Product Overview

The UCC5630MWPTR from Texas Instruments is a 9-channel SCSI (Small Computer System Interface) active terminator designed for high-performance data bus termination. It integrates nine 110Ω termination resistors with a precision voltage reference and a disconnect function, ensuring signal integrity in high-speed SCSI applications. Operating from a 3.3V supply, it provides low output capacitance and fast response time, making it ideal for Ultra320 SCSI and other high-speed parallel bus systems. The device is available in a compact TSSOP package, suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• 9-channel active termination for SCSI buses
• Precision 110Ω termination resistors
• Low output capacitance (10 pF) for high-speed operation
• 3.3V single-supply operation
• Disable function for power saving or bus isolation
• Compliant with SCSI-1, SCSI-2, SCSI-3, and Ultra320 standards
• Compact TSSOP-16 package

Target Applications

• SCSI host adapters for servers and workstations
• RAID controllers (e.g., LSI MegaRAID series)
• High-speed data storage systems (e.g., Dell PowerVault)
• Industrial controllers with SCSI interfaces
• Test and measurement equipment (e.g., Agilent logic analyzers)
