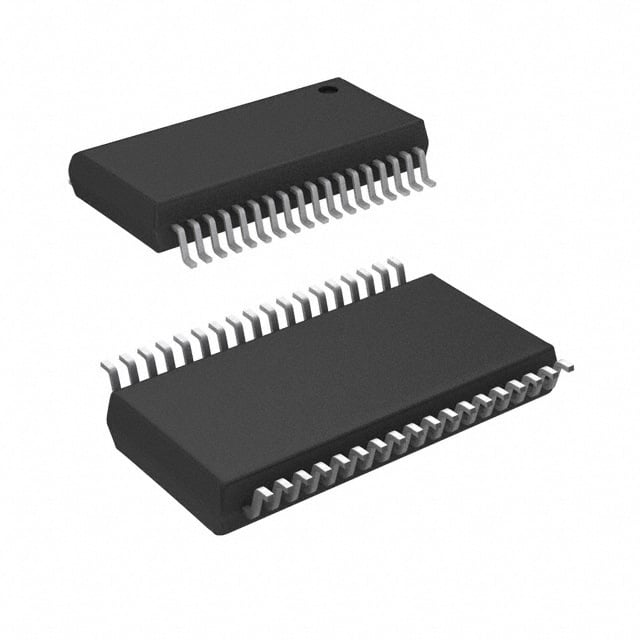

UCC5631AMWP TI SCSI Terminator | 36-SSOP | 9-Line, 110-Ohm

Product Overview

The UCC5631AMWP from Texas Instruments is a 9-line SCSI (Small Computer System Interface) active terminator designed for high-performance data bus termination. Housed in a compact 36-pin SSOP package, this device provides precise impedance matching and signal integrity for SCSI parallel interfaces. It integrates 9 termination lines with 110-ohm impedance, compliant with SCSI-1, SCSI-2, and Ultra SCSI standards. The UCC5631AMWP operates over a wide supply voltage range of 4.0V to 5.5V and features low output capacitance (6 pF typical) to minimize signal distortion. Its active termination scheme reduces reflections and ensures reliable data transmission at speeds up to 40 MHz. The device includes a disable control pin for power-saving mode and thermal shutdown protection. Ideal for use in servers, storage arrays, and industrial computing systems where SCSI bus termination is critical.

Detailed Technical Specifications

Key Features

• 9-line active termination for SCSI buses
• 110-ohm impedance matching
• Low output capacitance (6 pF) for high-speed signals
• Wide supply voltage range: 4.0V to 5.5V
• Disable control for power saving
• Thermal shutdown protection
• Compact 36-pin SSOP package
• Compliant with SCSI-1, SCSI-2, and Ultra SCSI

Target Applications

• Server motherboards and RAID controllers (e.g., Dell PowerEdge servers)
• Storage area network (SAN) switches
• Industrial PCs with SCSI interfaces
• 5G base station backplane termination
• Automotive infotainment systems (e.g., dashboard controllers)
• Medical imaging equipment (e.g., MRI scanners)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for UCC5631AMWP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
