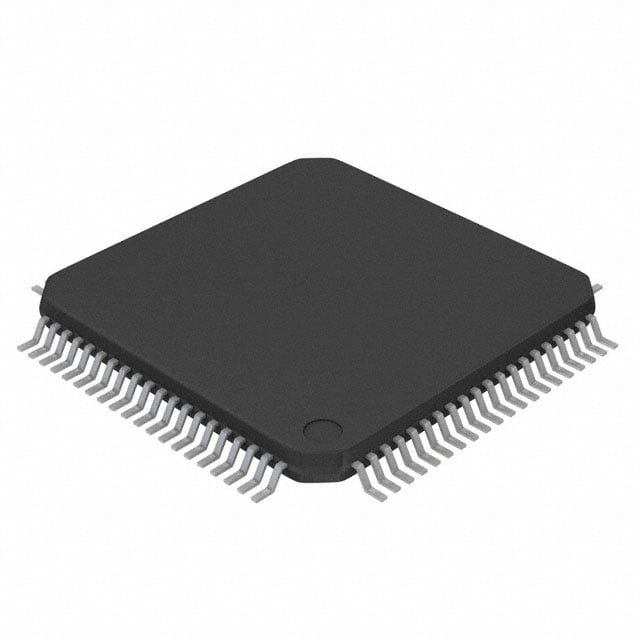

UCD9240PFCR TI Digital PWM Controller | 80-TQFP (12x12) | 4 Outputs, PMBus

Product Overview

The UCD9240PFCR from Texas Instruments is a fully integrated, multi-output digital PWM controller designed for high-performance power management. It features four independent PWM outputs with programmable frequency, phase, and voltage, supporting both voltage-mode and current-mode control. The device includes PMBus communication for real-time monitoring and configuration, making it ideal for complex power systems in telecom, networking, and industrial applications.

Detailed Technical Specifications

Key Features

• Four independent digital PWM loops with programmable control parameters
• Supports voltage-mode, current-mode, and D-CAP+ control
• Integrated 12-bit ADC for voltage and current sensing
• PMBus compliant for telemetry and configuration
• Adaptive voltage scaling (AVS) support
• Overcurrent, overvoltage, and overtemperature protection
• Fusion Digital Power Designer software support

Target Applications

• 5G base station power supplies
• Networking switches and routers (e.g., Cisco Catalyst 9000)
• FPGA and ASIC power management (e.g., Xilinx Virtex UltraScale+)
• Industrial automation controllers
• Telecom rectifiers and DC-DC converters
