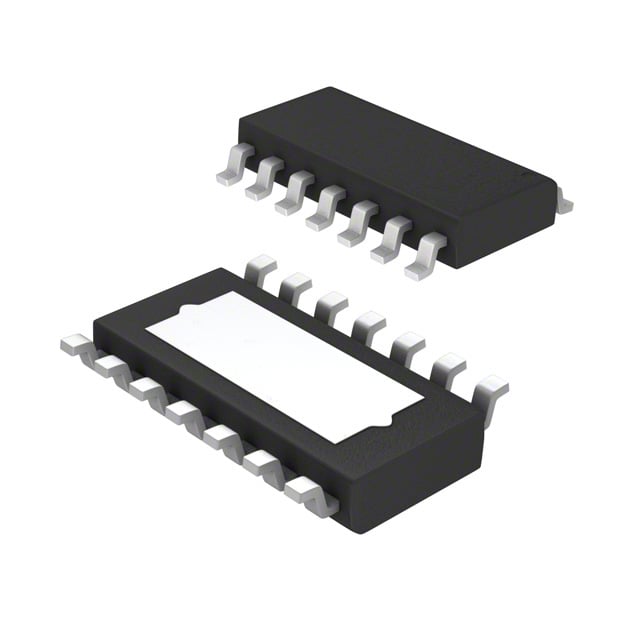

1EBN1001AEXUMA1 Infineon EiceDRIVER™ | PG-DSO-14-43 | 0.7A Source, 0.7A Sink

Product Overview

The Infineon 1EBN1001AEXUMA1 is a single-channel isolated gate driver IC from the EiceDRIVER™ family, designed for driving IGBTs and MOSFETs in high-voltage applications. Housed in a compact PG-DSO-14-43 package, it provides robust galvanic isolation with a creepage distance of 8 mm, suitable for industrial and automotive systems. The device features a typical output current of 0.7 A source and 0.7 A sink, enabling efficient switching of power semiconductors. With an operating temperature range of -40°C to +125°C, it ensures reliable performance in harsh environments.

Detailed Technical Specifications

Key Features

• Galvanic isolation with 3.0 kV RMS rating
• 8 mm creepage distance for high-voltage safety
• 0.7 A peak output current for driving IGBTs and MOSFETs
• Wide supply voltage range: 15 V to 30 V
• Fast propagation delay: 100 ns typical
• High common mode transient immunity: >100 kV/µs
• Active Miller clamp function
• Undervoltage lockout (UVLO) protection
• RoHS compliant

Target Applications

• Industrial motor drives (e.g., Siemens SINAMICS G120)
• Uninterruptible power supplies (UPS) (e.g., APC Smart-UPS)
• Solar inverters (e.g., SMA Sunny Boy)
• Electric vehicle charging stations (e.g., ABB Terra HP)
• 5G base station power supplies (e.g., Nokia AirScale)
• Automotive on-board chargers (e.g., Tesla Model 3)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for 1EBN1001AEXUMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

英飛凌 1EBN1001AEXUMA1 是 EiceDRIVER™ 系列中的單通道隔離式柵極驅動器 IC，專為驅動高壓應用中的 IGBT 和 MOSFET 設計。採用緊湊的 PG-DSO-14-43 封裝，提供 8 mm 爬電距離的穩健隔離，適用於工業和汽車系統。該器件具有 0.7 A 源電流和 0.7 A 灌電流的典型輸出電流，可實現功率半導體的高效開關。工作溫度範圍為 -40°C 至 +125°C，確保在惡劣環境下的可靠性能。

詳細技術參數

核心特性

• 3.0 kV RMS 額定隔離
• 8 mm 爬電距離，確保高壓安全
• 0.7 A 峰值輸出電流，驅動 IGBT 和 MOSFET
• 寬電源電壓範圍：15 V 至 30 V
• 快速傳播延遲：典型 100 ns
• 高共模瞬態抗擾度：>100 kV/µs
• 有源米勒鉗位功能
• 欠壓鎖定 (UVLO) 保護
• 符合 RoHS 標準

典型應用場景

• 工業電機驅動（例如西門子 SINAMICS G120）
• 不間斷電源 (UPS)（例如 APC Smart-UPS）
• 太陽能逆變器（例如 SMA Sunny Boy）
• 電動汽車充電樁（例如 ABB Terra HP）
• 5G 基站電源（例如諾基亞 AirScale）
• 車載充電器（例如特斯拉 Model 3）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 1EBN1001AEXUMA1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
