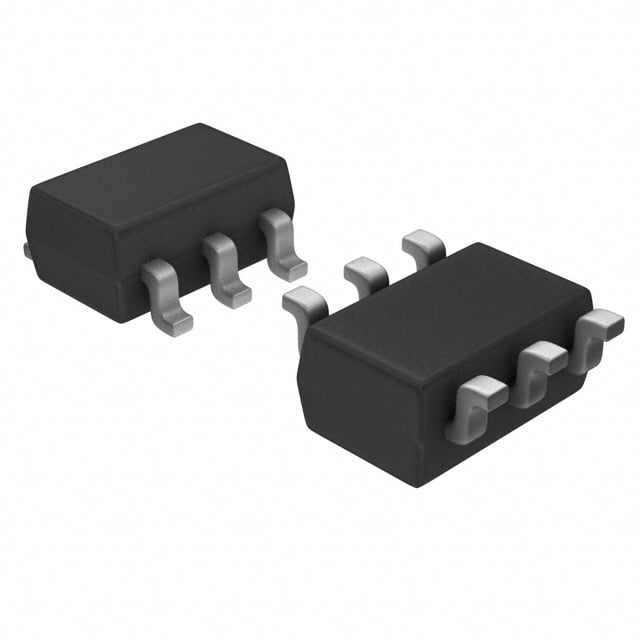

1EDN7550BXTSA1 Infineon Gate Driver | PG-SOT23-6 | 4A Peak, 5V UVLO

Product Overview

The Infineon 1EDN7550BXTSA1 is a single-channel, non-isolated gate driver designed for driving MOSFETs and IGBTs in low-side configurations. Housed in a compact PG-SOT23-6 package, it delivers 4A peak source and sink current with a wide supply voltage range from 4.5V to 20V. The device features a 5V undervoltage lockout (UVLO) threshold and operates over a junction temperature range of -40°C to +150°C. Its fast propagation delay (typically 13ns) and high common-mode transient immunity make it suitable for high-frequency switching applications.

Detailed Technical Specifications

Key Features

• 4A peak gate drive current for fast switching
• Wide supply voltage range: 4.5V to 20V
• 5V UVLO with hysteresis for reliable startup
• Low propagation delay (13ns) and fast rise/fall times
• High common-mode transient immunity (>50V/ns)
• Compact SOT23-6 package for space-constrained designs
• RoHS compliant and lead-free

Target Applications

• 5G base station power supplies (e.g., rectifier modules)
• Automotive dashboard displays (backlight LED drivers)
• Industrial motor drives (e.g., servo drives)
• DC-DC converters for telecom equipment
• Battery management systems (BMS) for energy storage
