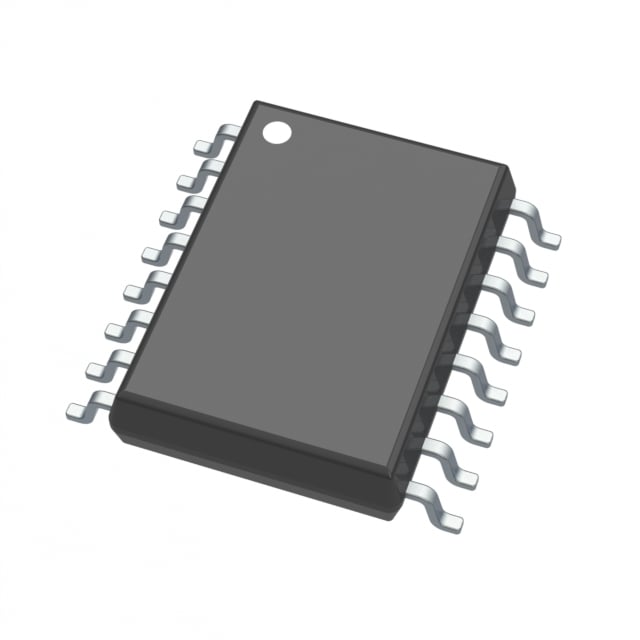

2ED1322S12MXUMA1 Infineon Gate Driver | PG-DSO-16-U02 | 1200V, 2.5A

Product Overview

The Infineon 2ED1322S12MXUMA1 is a high-voltage, high-speed gate driver IC designed for driving IGBTs and MOSFETs in applications requiring up to 1200V blocking voltage. Housed in a compact PG-DSO-16-U02 package, it provides robust isolation and protection features, making it ideal for industrial and automotive power systems.

Detailed Technical Specifications

Key Features

• Dual-channel isolated gate driver
• 2.5A peak output current per channel
• 1200V functional isolation
• Under-voltage lockout (UVLO) for both channels
• Active Miller clamp
• Short-circuit protection via DESAT detection
• Soft-off during fault
• 3.3V and 5V input logic compatible

Target Applications

• Industrial motor drives (e.g., Siemens SINAMICS G120)
• Solar inverters (e.g., SMA Sunny Boy)
• Uninterruptible power supplies (UPS) (e.g., APC Smart-UPS)
• Electric vehicle charging stations (e.g., ABB Terra)
• 5G base station power supplies (e.g., Nokia AirScale)
• Automotive traction inverters (e.g., Tesla Model 3)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for 2ED1322S12MXUMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
