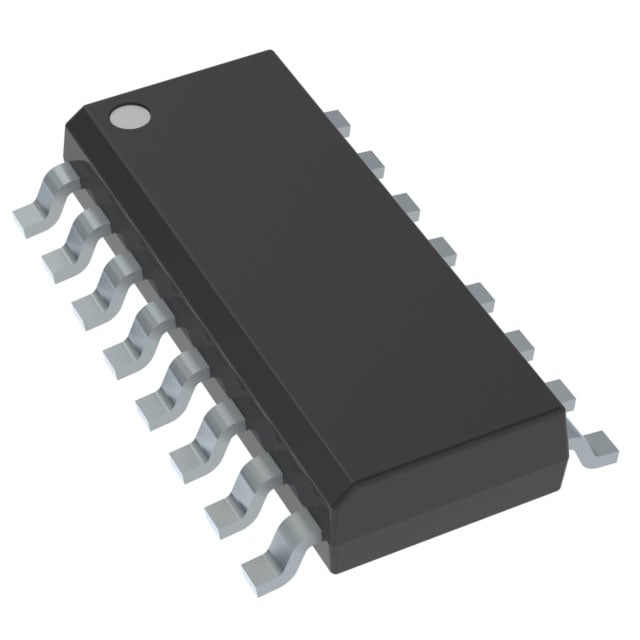

2EDF8275FXUMA1 Infineon Isolated Gate Driver | PG-DSO-16-11 | 4A Sink/Source, 5.7kV Isolation

Product Overview

The 2EDF8275FXUMA1 is a high-performance isolated dual-channel gate driver from Infineon, designed for driving power MOSFETs and IGBTs in high-voltage applications. It features 4A peak sink/source current capability and 5.7kV (RMS) galvanic isolation, making it ideal for demanding industrial and automotive systems. The device is housed in a compact PG-DSO-16-11 package, offering excellent thermal performance and space savings.

Detailed Technical Specifications

Key Features

• Dual-channel isolated gate driver with 4A peak drive strength
• 5.7kV (RMS) galvanic isolation for safety
• Ultra-fast propagation delay (45 ns) and high CMTI (>100 V/ns)
• Wide primary-side supply range (3.0V to 5.5V)
• Output supply up to 25V for driving SiC and GaN devices
• Integrated dead-time control and shoot-through protection
• Active Miller clamp and desaturation detection
• Small PG-DSO-16-11 package for compact designs

Target Applications

• 5G base station power supplies (e.g., rectifiers and DC-DC converters)
• Automotive traction inverters (e.g., for electric vehicles like Tesla Model 3)
• Industrial motor drives (e.g., Siemens SINAMICS series)
• Solar inverters (e.g., Huawei SUN2000 series)
• Server and telecom power supplies (e.g., for data centers)
• Battery management systems (BMS) for energy storage

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for 2EDF8275FXUMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
