2EDL8123G3CXTMA1 Infineon Gate Driver | PG-VSON-10-4 | 5A Sink/Source, 120V Bootstrap

Product Overview

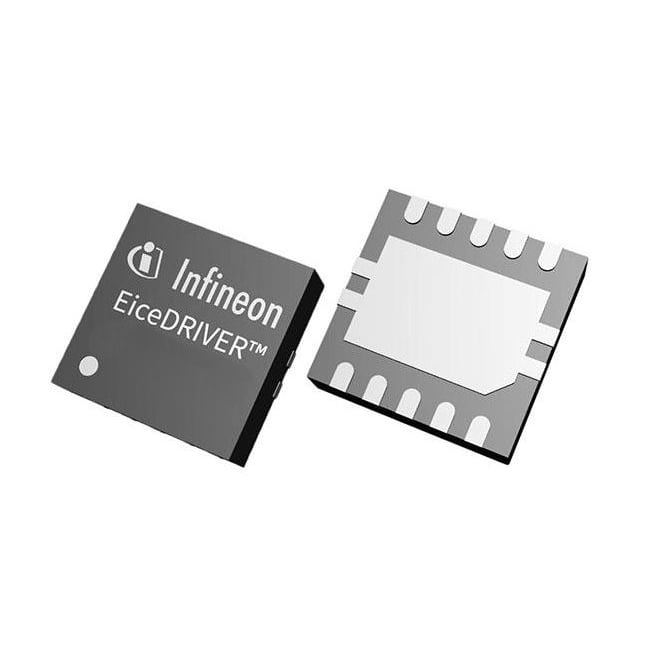

The Infineon 2EDL8123G3CXTMA1 is a high-voltage, high-speed power MOSFET and IGBT gate driver with integrated bootstrap diode. It is designed for driving N-channel MOSFETs in half-bridge configurations. The device features a 120V bootstrap voltage rating and 5A peak sink/source current capability, making it suitable for a wide range of power conversion applications. Housed in a compact PG-VSON-10-4 package, it offers excellent thermal performance and space savings.

Detailed Technical Specifications

Key Features

• Integrated bootstrap diode
• High peak output current: 5A sink/source
• Fast propagation delay: 50 ns typical
• Wide supply voltage range: 10V to 20V
• Bootstrap voltage up to 120V
• Under-voltage lockout (UVLO) for VCC and VB
• Shoot-through prevention
• RoHS compliant

Target Applications

• 5G base station power supplies
• Server and telecom power converters
• Industrial motor drives
• Automotive DC-DC converters
• Solar inverters
• LED lighting drivers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for 2EDL8123G3CXTMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

英飛凌2EDL8123G3CXTMA1是一款高壓、高速功率MOSFET和IGBT柵極驅動器，內置自舉二極管。它專為驅動半橋配置中的N溝道MOSFET而設計。該器件具有120V自舉電壓額定值和5A峰值灌/拉電流能力，適用於各種電源轉換應用。採用緊湊的PG-VSON-10-4封裝，提供出色的熱性能和節省空間。

詳細技術參數

核心特性

• 集成自舉二極管
• 高峰值輸出電流：5A 灌/拉
• 快速傳播延遲：典型50 ns
• 寬電源電壓範圍：10V 至 20V
• 自舉電壓高達120V
• VCC和VB欠壓鎖定 (UVLO)
• 防止直通
• 符合RoHS標準

典型應用場景

• 5G基站電源
• 服務器和電信電源轉換器
• 工業電機驅動
• 汽車DC-DC轉換器
• 太陽能逆變器
• LED照明驅動器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 2EDL8123G3CXTMA1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
