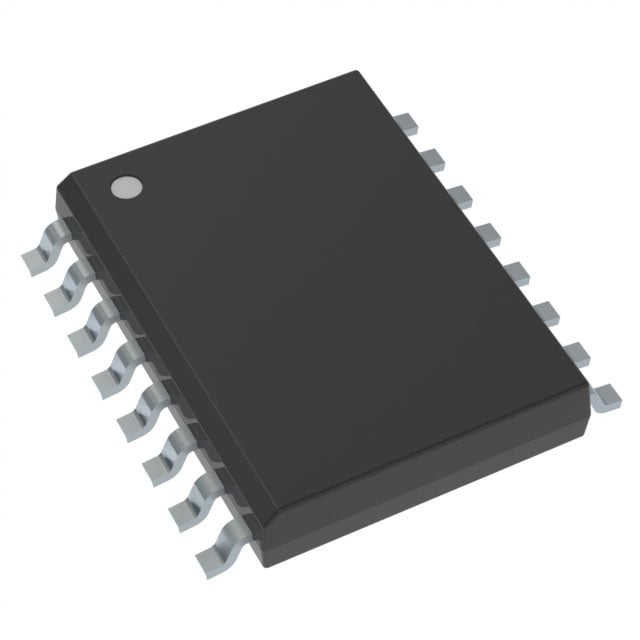

2EDS8265HXUMA2 Infineon Gate Driver | PG-DSO-16-30 | 8A Sink/Source, 5.7kV Isolation

Product Overview

The Infineon 2EDS8265HXUMA2 is a high-voltage, dual-channel isolated gate driver IC designed for driving power MOSFETs and IGBTs in demanding applications. Housed in a compact PG-DSO-16-30 package, it offers robust isolation up to 5.7kV (RMS) and high output current of 8A sink/source per channel. This device is ideal for industrial motor drives, renewable energy inverters, and automotive systems requiring reliable galvanic isolation and fast switching.

Detailed Technical Specifications

Key Features

• Dual-channel isolated gate driver with 8A peak output
• 5.7kV (RMS) galvanic isolation for safety
• Fast propagation delay (50ns) and low jitter
• Active Miller clamp for robust switching
• Under-voltage lockout (UVLO) protection
• Wide supply voltage range (3.0V to 5.5V)
• Compact PG-DSO-16-30 package

Target Applications

• Industrial motor drives (e.g., Siemens SINAMICS)
• Solar inverters (e.g., SMA Sunny Boy)
• Uninterruptible power supplies (UPS)
• Electric vehicle charging stations
• 5G base station power supplies
• Automotive traction inverters

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for 2EDS8265HXUMA2. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

英飛凌 2EDS8265HXUMA2 是一款高壓雙通道隔離式柵極驅動器 IC，專為驅動要求苛刻的功率 MOSFET 和 IGBT 而設計。採用緊湊的 PG-DSO-16-30 封裝，提供高達 5.7kV（RMS）的穩健隔離和每通道 8A 的峰值輸出電流。該器件非常適合需要可靠電氣隔離和快速開關的工業電機驅動、可再生能源逆變器和汽車系統。

詳細技術參數

核心特性

• 雙通道隔離柵極驅動器，峰值輸出 8A
• 5.7kV（RMS）電氣隔離，確保安全
• 快速傳播延遲（50ns）和低抖動
• 有源米勒鉗位，實現穩健開關
• 欠壓鎖定（UVLO）保護
• 寬電源電壓範圍（3.0V 至 5.5V）
• 緊湊的 PG-DSO-16-30 封裝

典型應用場景

• 工業電機驅動（例如西門子 SINAMICS）
• 太陽能逆變器（例如 SMA Sunny Boy）
• 不間斷電源（UPS）
• 電動汽車充電樁
• 5G 基站電源
• 汽車牽引逆變器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 2EDS8265HXUMA2 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
