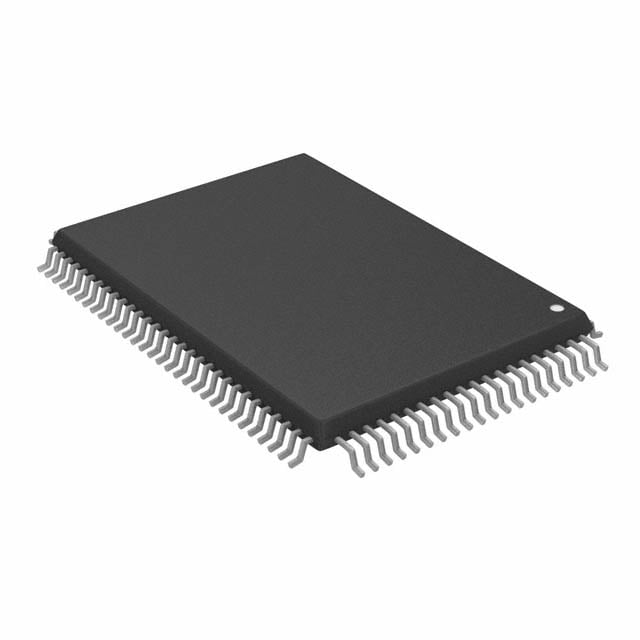

CY7C1370KV25-200AXC Infineon SRAM | 100-TQFP (14X20) | 18Mb, 200MHz

Product Overview

The CY7C1370KV25-200AXC is a high-performance 18-Mbit synchronous SRAM from Infineon, organized as 512K words by 36 bits. It operates at 200 MHz with a 2.5V core supply and 1.8V/2.5V I/O, offering fast access times and low power consumption. Housed in a 100-pin TQFP (14x20mm) package, it features a 3-stage pipelined architecture, burst capability, and IEEE 1149.1 JTAG boundary scan. This device is ideal for networking, telecommunications, and industrial applications requiring high-speed data buffering and caching.

Detailed Technical Specifications

Key Features

• High-speed 200 MHz operation with 3.0 ns access time
• 18 Mbit density in 512K x 36 configuration
• Low power: typical active current 180 mA, standby 10 mA
• 3-stage pipelined synchronous architecture for high throughput
• Programmable burst length (1, 2, 4, 8) and burst type (linear/interleaved)
• Separate byte write enables for flexible data management
• IEEE 1149.1 JTAG boundary scan for testability
• 2.5V core with selectable 1.8V/2.5V I/O for voltage flexibility
• Compact 100-TQFP package (14x20mm) for space-constrained designs
• Industrial temperature range option available

Target Applications

• 5G base stations: L2/L3 packet processing buffers
• Automotive: Advanced driver-assistance systems (ADAS) radar data caching
• Networking: High-end routers and switches for packet buffering
• Telecommunications: Line cards and optical transport network buffers
• Industrial: High-speed data acquisition and FPGA configuration storage
• Medical imaging: Real-time image processing frame buffers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CY7C1370KV25-200AXC. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CY7C1370KV25-200AXC 是英飛凌推出的一款高性能 18-Mbit 同步 SRAM，組織為 512K 字 x 36 位元。它工作在 200 MHz，核心電源 2.5V，I/O 電壓 1.8V/2.5V，具有快速存取時間和低功耗特性。採用 100 引腳 TQFP（14x20mm）封裝，具備 3 級流水線架構、突發能力和 IEEE 1149.1 JTAG 邊界掃描。該器件非常適合需要高速數據緩衝和緩存的網絡、電信和工業應用。

詳細技術參數

核心特性

• 高速 200 MHz 操作，存取時間 3.0 ns
• 18 Mbit 密度，512K x 36 配置
• 低功耗：典型工作電流 180 mA，待機 10 mA
• 3 級流水線同步架構，實現高吞吐量
• 可編程突發長度（1、2、4、8）和突發類型（線性/交錯）
• 獨立的字節寫入使能，靈活數據管理
• IEEE 1149.1 JTAG 邊界掃描，便於測試
• 2.5V 核心，可選 1.8V/2.5V I/O，電壓靈活
• 緊湊的 100-TQFP 封裝（14x20mm），節省空間
• 可選工業級溫度範圍

典型應用場景

• 5G 基站：L2/L3 數據包處理緩衝
• 汽車：高級駕駛輔助系統（ADAS）雷達數據緩存
• 網絡：高端路由器和交換機的數據包緩衝
• 電信：線路卡和光傳輸網絡緩衝
• 工業：高速數據採集和 FPGA 配置存儲
• 醫療影像：實時圖像處理幀緩衝

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CY7C1370KV25-200AXC 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
