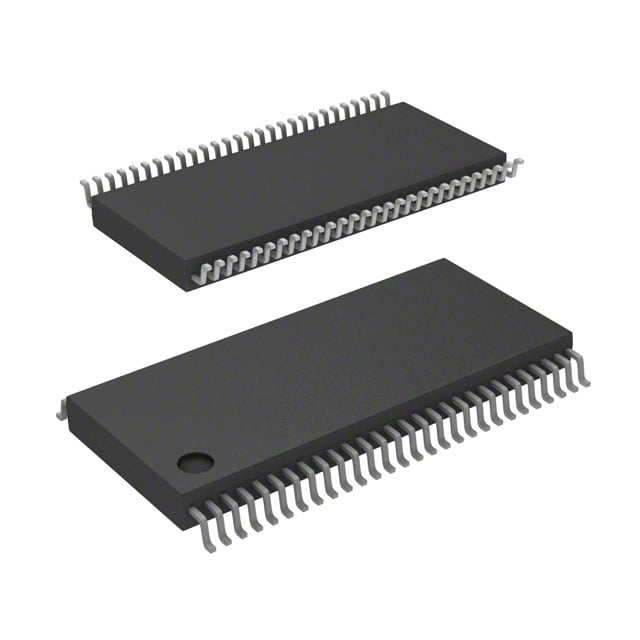

CY7C68014A-56PVXC Infineon USB Controller | 56-SSOP | 48MHz, 16KB RAM

Product Overview

The CY7C68014A-56PVXC is a high-performance USB 2.0 controller from Infineon (formerly Cypress Semiconductor), designed for embedded applications requiring reliable USB connectivity. It integrates an enhanced 8051 microcontroller running at up to 48 MHz, 16 KB of on-chip RAM, and a USB 2.0 transceiver supporting full-speed (12 Mbps) and high-speed (480 Mbps) data rates. The device is housed in a compact 56-pin SSOP package, making it suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Integrated USB 2.0 transceiver with high-speed (480 Mbps) and full-speed (12 Mbps) support
• Enhanced 8051 microcontroller core with 48 MHz operation
• 16 KB on-chip RAM for firmware and data buffering
• 24 programmable GPIOs for flexible system integration
• I2C and UART interfaces for peripheral communication
• Low power consumption with suspend mode
• Industrial temperature range option available
• Compatible with EZ-USB FX2LP development tools

Target Applications

The CY7C68014A-56PVXC is ideal for a wide range of USB-based applications, including:

• 5G base station control modules requiring USB 2.0 interface for configuration and data logging
• Automotive dashboard infotainment systems with USB connectivity for media playback and firmware updates
• Industrial data acquisition systems using USB for real-time sensor data transfer
• Medical devices such as portable diagnostic equipment with USB host/device functionality
• Consumer electronics like set-top boxes and gaming peripherals

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CY7C68014A-56PVXC. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CY7C68014A-56PVXC 是英飛凌（原賽普拉斯半導體）推出的一款高性能 USB 2.0 控制器，專為需要可靠 USB 連接的嵌入式應用而設計。它集成了增強型 8051 微控制器（最高 48 MHz）、16 KB 片上 RAM 以及支持全速（12 Mbps）和高速（480 Mbps）數據傳輸的 USB 2.0 收發器。該器件採用緊湊的 56 引腳 SSOP 封裝，適合空間受限的設計。

詳細技術參數

核心特性

• 集成 USB 2.0 收發器，支持高速（480 Mbps）和全速（12 Mbps）
• 增強型 8051 微控制器核心，工作頻率 48 MHz
• 16 KB 片上 RAM，用於固件和數據緩衝
• 24 個可編程 GPIO，便於系統集成
• I2C 和 UART 接口，用於外設通信
• 低功耗設計，支持掛起模式
• 可選工業級溫度範圍
• 兼容 EZ-USB FX2LP 開發工具

典型應用場景

CY7C68014A-56PVXC 適用於多種基於 USB 的應用，包括：

• 5G 基站控制模塊，通過 USB 2.0 接口進行配置和數據記錄
• 汽車儀表盤信息娛樂系統，支持 USB 連接以播放媒體和更新固件
• 工業數據採集系統，利用 USB 實現實時傳感器數據傳輸
• 醫療設備，如便攜式診斷儀器，具備 USB 主機/設備功能
• 消費電子產品，如機頂盒和遊戲外設

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CY7C68014A-56PVXC 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
