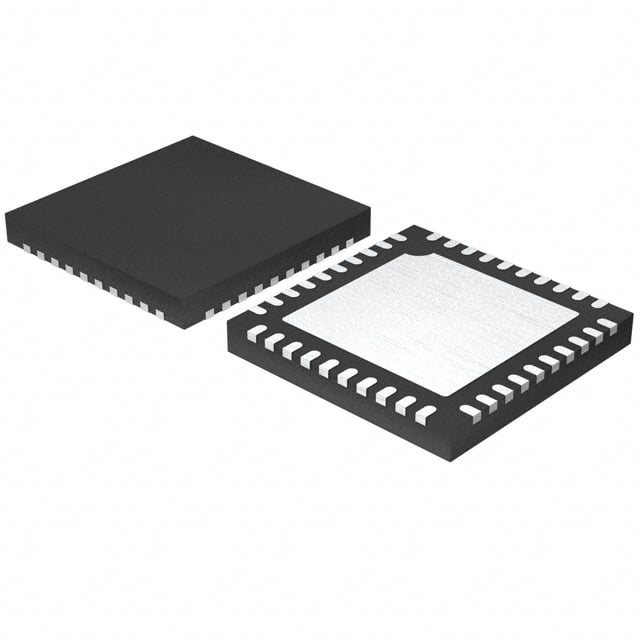

CY8C4146LQI-S433 Infineon MCU | 40-QFN (6x6) | ARM Cortex-M0+, 64KB Flash, 8KB SRAM

Product Overview

The CY8C4146LQI-S433 is a high-performance 32-bit microcontroller from Infineon's PSoC 4 family, featuring an ARM Cortex-M0+ core. It is designed for embedded control applications requiring low power consumption, rich analog integration, and flexible programmability. The device is housed in a compact 40-pin QFN package (6x6 mm) and offers a wide operating voltage range of 1.71V to 5.5V, making it suitable for battery-powered and industrial applications.

Detailed Technical Specifications

Key Features

• ARM Cortex-M0+ core with single-cycle multiply and up to 48 MHz operation
• Integrated CapSense technology for touch and proximity sensing
• Flexible analog front-end with 12-bit SAR ADC, op-amps, comparators, and DAC
• Rich digital peripherals including CAN FD, I2S, and multiple serial communication blocks
• Ultra-low power consumption with multiple sleep modes (Deep Sleep: 2.5 µA, Hibernate: 150 nA)
• Programmable logic blocks (UDB) for custom digital functions
• Wide operating voltage range (1.71V to 5.5V) for direct battery connection
• Industrial temperature range (-40°C to +85°C)

Target Applications

• Industrial control systems (e.g., PLC, motor control for conveyor belts)
• Smart home devices (e.g., smart thermostat, touch-enabled light switches)
• Automotive body electronics (e.g., dashboard control, steering wheel touch controls)
• Medical devices (e.g., portable patient monitor, infusion pump)
• 5G base station power management and monitoring
• Consumer electronics (e.g., gaming peripherals, wearable fitness tracker)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CY8C4146LQI-S433. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CY8C4146LQI-S433 是英飛凌 PSoC 4 系列中的一款高性能 32 位微控制器，採用 ARM Cortex-M0+ 內核。它專為需要低功耗、豐富模擬集成和靈活可編程性的嵌入式控制應用而設計。該器件採用緊湊的 40 引腳 QFN 封裝（6x6 mm），工作電壓範圍寬（1.71V 至 5.5V），適用於電池供電和工業應用。

詳細技術參數

核心特性

• ARM Cortex-M0+ 內核，單週期乘法，最高 48 MHz 操作
• 集成 CapSense 技術，用於觸摸和接近感應
• 靈活的模擬前端，包括 12 位 SAR ADC、運算放大器、比較器和 DAC
• 豐富的數字外設，包括 CAN FD、I2S 和多個串行通信塊
• 超低功耗，多種睡眠模式（深度睡眠：2.5 µA，休眠：150 nA）
• 可編程邏輯塊（UDB）用於自定義數字功能
• 寬工作電壓範圍（1.71V 至 5.5V），可直接連接電池
• 工業溫度範圍（-40°C 至 +85°C）

典型應用場景

• 工業控制系統（例如 PLC、輸送帶電機控制）
• 智能家居設備（例如智能恆溫器、觸控燈開關）
• 汽車車身電子（例如儀表盤控制、方向盤觸控）
• 醫療設備（例如便攜式病人監護儀、輸液泵）
• 5G 基站電源管理和監控
• 消費電子（例如遊戲外設、可穿戴健身追踪器）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CY8C4146LQI-S433 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
