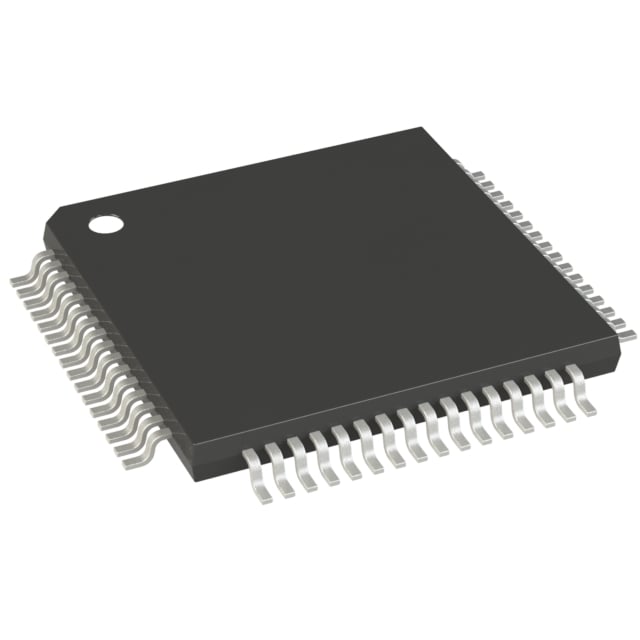

CY8C4148AZSS555XQLA1 Infineon MCU | 64-TQFP (10x10) | ARM Cortex-M0+, 256KB Flash

Product Overview

The CY8C4148AZSS555XQLA1 is a high-performance 32-bit microcontroller from Infineon's PSoC 4 series, featuring an ARM Cortex-M0+ core. It is designed for embedded control applications requiring low power consumption, rich analog and digital peripherals, and flexible programmability. The device is housed in a compact 64-pin TQFP package (10x10 mm) and offers a wide operating voltage range of 1.71V to 5.5V, making it suitable for battery-powered and industrial applications.

Detailed Technical Specifications

Key Features

• ARM Cortex-M0+ core with single-cycle multiply and hardware divide
• Ultra-low power consumption with multiple sleep modes (Deep Sleep, Hibernate)
• Integrated programmable analog blocks (op-amps, comparators, ADC, DAC)
• CapSense capacitive touch sensing with noise immunity
• Flexible routing of digital and analog signals via programmable interconnect
• Rich serial communication interfaces (I2C, SPI, UART, LIN)
• Up to 36 GPIOs with programmable drive modes
• 8-channel DMA controller for data transfer without CPU intervention
• Wide operating voltage range (1.71V to 5.5V) for compatibility with various power sources
• Industrial temperature range (-40°C to +85°C)

Target Applications

• Industrial control systems (e.g., PLC, motor control for conveyor belts)
• Smart home devices (e.g., smart thermostat, lighting control)
• Automotive (e.g., dashboard control, steering wheel controls)
• Medical devices (e.g., patient monitoring, portable diagnostic equipment)
• Consumer electronics (e.g., gaming peripherals, wearable devices)
• IoT edge nodes (e.g., sensor hubs, environmental monitoring)
• 5G base station power management and monitoring
• Battery management systems (BMS) for electric vehicles

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CY8C4148AZSS555XQLA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CY8C4148AZSS555XQLA1 是英飛凌 PSoC 4 系列的高性能 32 位微控制器，採用 ARM Cortex-M0+ 內核。它專為需要低功耗、豐富的模擬和數字外設以及靈活可編程性的嵌入式控制應用而設計。該器件採用緊湊的 64 引腳 TQFP 封裝（10x10 mm），工作電壓範圍寬（1.71V 至 5.5V），適用於電池供電和工業應用。

詳細技術參數

核心特性

• ARM Cortex-M0+ 內核，支持單週期乘法和硬件除法
• 超低功耗，支持多種睡眠模式（深度睡眠、休眠）
• 集成可編程模擬模塊（運算放大器、比較器、ADC、DAC）
• CapSense 電容式觸摸感應，具有抗噪能力
• 通過可編程互連實現靈活的數字和模擬信號路由
• 豐富的串行通信接口（I2C、SPI、UART、LIN）
• 最多 36 個 GPIO，可編程驅動模式
• 8 通道 DMA 控制器，無需 CPU 干預即可傳輸數據
• 寬工作電壓範圍（1.71V 至 5.5V），兼容多種電源
• 工業溫度範圍（-40°C 至 +85°C）

典型應用場景

• 工業控制系統（例如 PLC、輸送帶電機控制）
• 智能家居設備（例如智能恆溫器、照明控制）
• 汽車電子（例如儀表板控制、方向盤控制）
• 醫療設備（例如病人監護、便攜式診斷設備）
• 消費電子（例如遊戲外設、可穿戴設備）
• 物聯網邊緣節點（例如傳感器集線器、環境監測）
• 5G 基站電源管理與監控
• 電動汽車電池管理系統（BMS）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CY8C4148AZSS555XQLA1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
