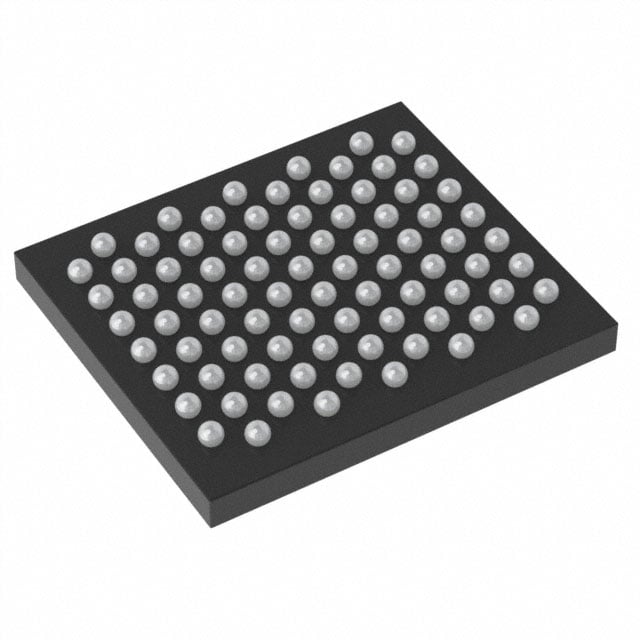

CY8C6117FDI-F02T Infineon MCU | 80-WLCSP（3.68X3.19） | 150MHz ARM Cortex-M4F, 1MB Flash

Product Overview

The CY8C6117FDI-F02T is a high-performance 32-bit ARM Cortex-M4F microcontroller from Infineon's PSoC 6 family. It features a 150MHz CPU with DSP and FPU, 1MB flash, 256KB SRAM, and rich analog/digital peripherals. Housed in a compact 80-WLCSP (3.68x3.19mm) package, it is ideal for space-constrained, low-power IoT and industrial applications.

Detailed Technical Specifications

Key Features

• 150 MHz ARM Cortex-M4F with single-cycle DSP and FPU
• 1 MB flash with 256 KB SRAM for complex applications
• Ultra-low power consumption: 22 µA/MHz active, 2.5 µA deep sleep
• Rich analog: 16-ch 12-bit ADC, DAC, OpAmp, comparator
• Advanced connectivity: USB, CAN-FD, multiple serial interfaces
• Hardware security: secure boot, crypto accelerator, PUF
• Compact 80-WLCSP package (3.68x3.19 mm) for space-constrained designs

Target Applications

• 5G base station control and monitoring
• Automotive dashboard and HMI controllers
• Industrial IoT edge nodes and sensors
• Smart home gateways and hubs
• Wearable health monitors
• Portable medical devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CY8C6117FDI-F02T. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CY8C6117FDI-F02T 是英飛凌 PSoC 6 系列的高性能 32 位 ARM Cortex-M4F 微控制器。它配備 150MHz CPU（含 DSP 和 FPU）、1MB 快閃記憶體、256KB SRAM 以及豐富的模擬/數位周邊。採用緊湊的 80-WLCSP（3.68x3.19mm）封裝，非常適合空間受限、低功耗的物聯網和工業應用。

詳細技術參數

核心特性

• 150 MHz ARM Cortex-M4F，含單週期 DSP 和 FPU
• 1 MB 快閃記憶體 + 256 KB SRAM，滿足複雜應用
• 超低功耗：運行 22 µA/MHz，深度睡眠 2.5 µA
• 豐富模擬：16 通道 12 位 ADC、DAC、運算放大器、比較器
• 先進連接：USB、CAN-FD、多種串列介面
• 硬體安全：安全啟動、加密加速器、PUF
• 緊湊 80-WLCSP 封裝（3.68x3.19 mm），適合空間受限設計

典型應用場景

• 5G 基地台控制與監控
• 汽車儀表板與 HMI 控制器
• 工業物聯網邊緣節點與感測器
• 智慧家庭閘道與集線器
• 可穿戴健康監測設備
• 便攜式醫療裝置

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CY8C6117FDI-F02T 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
